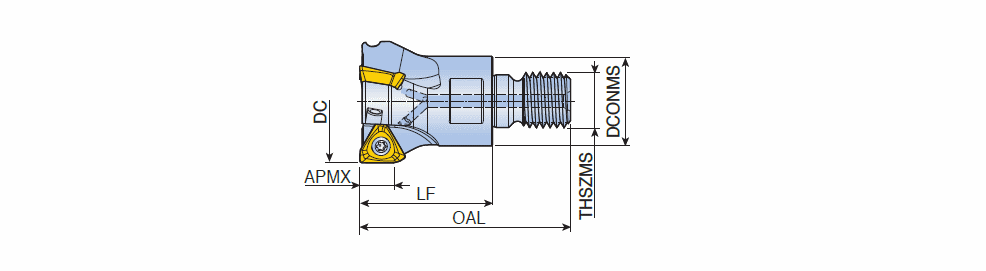

3P TE90-M-10 : 90° Modular end mills with T-FLEXTEC adaptation & high positive three helical cutting edges of 3PK(H)T 10 inserts

Designation	Tool sty	S1	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX		RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
3P TE90-220-M10-10	MODULAR ~	10.00~	20.00	2	18.00	35.00	55.00	M10	7.00	O ~	3.30~	0.06	90.0~	~	~	RC ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	35.00~	0~	2~	2~	3108724
3P TE90-221-M10-10	MODULAR ~	10.00~	21.00	2	18.00	35.00	55.00	M10	7.00	O ~	0.00~	0.06	90.0~	~	~	RC ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	35.00~	0~	2~	2~	6256519
3P TE90-325-M12-10	MODULAR ~	10.00~	25.00	3	21.00	35.00	57.00	M12	7.00	O ~	2.80~	0.09	90.0~	~	~	RC ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	35.00~	0~	3~	3~	3108725
3P TE90-326-M12-10	MODULAR ~	10.00~	26.00	3	21.00	35.00	57.00	M12	7.00	O ~	2.60~	0.09	90.0~	~	~	RC ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	35.00~	0~	3~	3~	6120536
3P TE90-432-M16-10	MODULAR ~	10.00~	32.00	4	29.00	43.00	68.00	M16	7.00	O ~	1.80~	0.20	90.0~	~	~	RF ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	4~	4~	3108726
3P TE90-532-M16-10	MODULAR ~	10.00~	32.00	5	29.00	43.00	68.00	M16	7.00	O ~	1.80~	0.21	90.0~	~	~	F ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	5~	5~	6162643
3P TE90-535-M16-10	MODULAR ~	10.00~	35.00	5	29.00	43.00	68.00	M16	7.00	O ~	1.70~	0.21	90.0~	~	~	F ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	5~	5~	6120537
3P TE90-540-M16-10	MODULAR ~	10.00~	40.00	5	29.00	43.00	68.00	M16	7.00	O ~	1.30~	0.26	90.0~	~	~	F ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	5~	5~	3108727
3P TE90-640-M16-10	MODULAR ~	10.00~	40.00	6	29.00	43.00	68.00	M16	7.00	O ~	1.30~	0.35	90.0~	~	~	XF ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	6~	6~	6162644
3P TE90-642-M16-10	MODULAR ~	10.00~	42.00	6	29.00	43.00	68.00	M16	7.00	O ~	1.30~	0.28	90.0~	~	~	XF ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	SAI ~	02 ~	IS$$749292326746570 ~	43.00~	0~	6~	6~	6120538
