TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

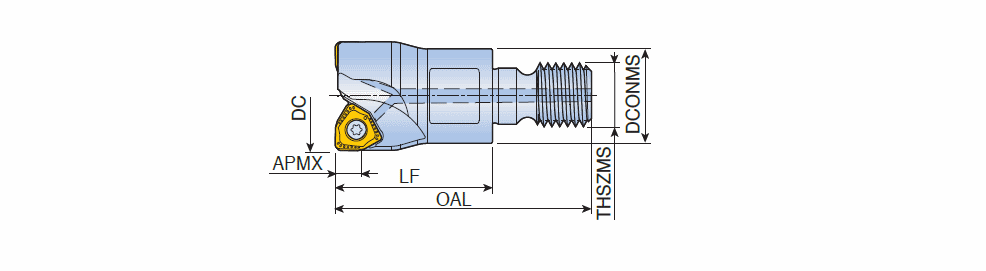

6N TE90-M-06/09 : 90° Modular end mills with T-FLEXTEC adaptation and positive six cutting edges of double-sided 6NGU 06/09 inserts

Designation	Tool sty	S1	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX		RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
6N TE90-225-M12-06	MODULAR ~	6.00~	25.00	2	21.00	35.00	57.00	M12	6.20	O ~	0.00~	0.10	90.0~	~	~	C ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	SAI ~	02 ~	IS$$386496738580332 ~	35.00~	0~	2~	2~	3110470
6N TE90-332-M16-06	MODULAR ~	6.00~	32.00	3	29.00	43.00	68.00	M16	6.20	O ~	0.00~	0.23	90.0~	~	~	RC ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	SAI ~	02 ~	IS$$386496738580332 ~	43.00~	0~	3~	3~	3110471
6N TE90-440-M16-06	MODULAR ~	6.00~	40.00	4	29.00	43.00	68.00	M16	6.20	O ~	0.00~	0.28	90.0~	~	~	RF ~	M2R-6N06 ~	71E01A05D27A8 ~	6NGU 060404R-M	SAI ~	02 ~	IS$$386496738580332 ~	43.00~	0~	4~	4~	3110472
6N TE90-232-M16-09	MODULAR ~	9.00~	32.00	2	29.00	43.00	68.00	M16	9.20	O ~	0.00~	0.23	90.0~	~	~	C ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	SAI ~	02 ~	IS$$436275966271403 ~	43.00~	0~	2~	2~	6308479
6N TE90-340-M16-09	MODULAR ~	9.00~	40.00	3	29.00	43.00	68.00	M16	9.20	O ~	0.00~	0.28	90.0~	~	~	RC ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	SAI ~	02 ~	IS$$436275966271403 ~	43.00~	0~	3~	3~	3110897
6N TE90-440-M16-09	MODULAR ~	9.00~	40.00	4	29.00	43.00	68.00	M16	9.20	O ~	0.00~	0.27	90.0~	~	~	RF ~	M2R-6N09 ~	71E01A05D27A8 ~	6NGU 090508R-M	SAI ~	02 ~	IS$$436275966271403 ~	43.00~	0~	4~	4~	6308480
