ZNHU : Periphery ground slotting inserts with helical cutting edges and economical 4 cutting edges for general applications

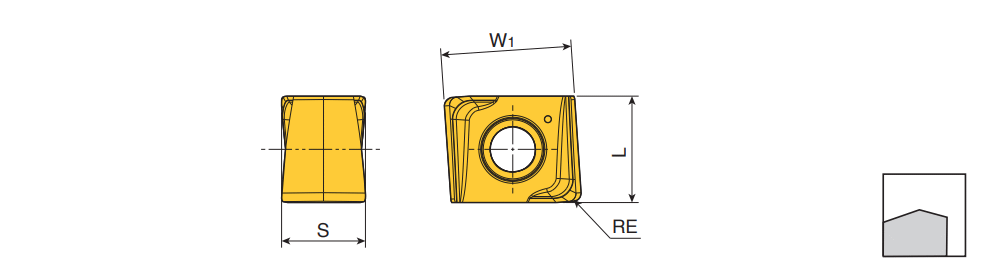

Designation	L	W1	S	RE	S1	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ZNHU 080-08	7.60	10.70	6.36	0.80	8.00~	0.160	0.080	M6 ~	TS-ZN08 ~	L ~	71DD68D91938A ~	4~	G50 ~	M ~	TT6080~	IS$$309065787568990 ~	ZNHU 08 ~	0~	5612659	4	TT8080 TT7080 TT9080 TT6080
ZNHU 110-08	10.60	13.00	8.38	0.80	11.00~	0.200	0.100	M6 ~	TS-ZN11 ~	L ~	71DD68D91938A ~	4~	G50 ~	M ~	TT6080~	IS$$376653739283175 ~	ZNHU 11 ~	0~	5613115	4	TT8080 TT7080 TT9080 TT6080
ZNHU 140-08	14.00	13.00	9.59	0.80	14.00~	0.210	0.105	M6 ~	TS-ZN14 ~	L ~	71DD68D91938A ~	4~	G50 ~	M ~	TT6080~	IS$$183621695473643 ~	ZNHU 14 ~	0~	5613207	4	TT8080 TT7080 TT9080 TT6080
