XNHU 09 ANTN-MM : Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron in max. depth of cut 5.0 mm

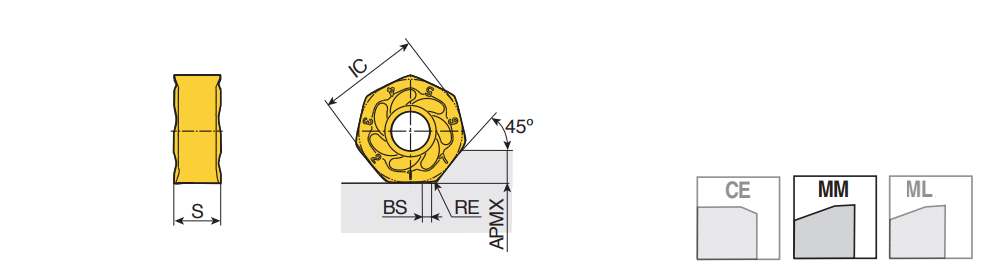

Designation	IC	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	W.link	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XNHU 0906 ANTN-MM	18.50	6.35	1.00	1.00	5.00	9.00~	1.20	1.50	0.250	0.130	M8 ~	40~	14~	C2H-XN09W ~	X ~	~	G50 ~	~	8525B ~	IS$$503698204801033 ~	XNHU 09 ~	0~	6338333		4		TT8525B TT9080 TT7515 TT6080
