TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

14D-F45XNW-R-09 : 45° Face mills with wedge clamping of double-sided economical 14 cutting edges inserts XN 09 for high productive cast iron milling

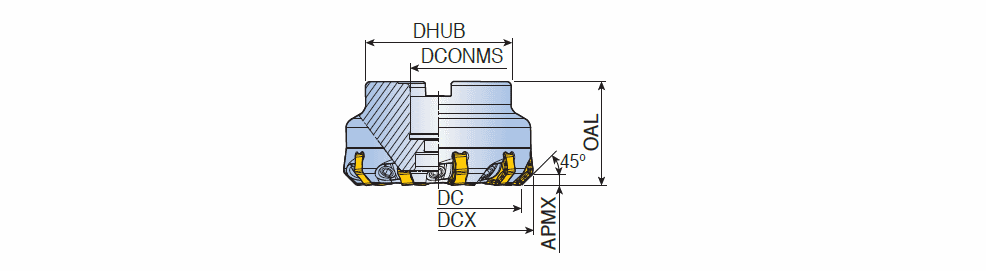

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	DCX	APMX	Arbor		S1	RMPX	KAPR	HAND	Insert	PD	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
14D-F45XNW 1080-27R-09	FACE MILL ~	80.00	10	27.00	70.00	50.00	91.90	5.00	A	1.47	9.00~	0.00~	45.0~	~	C2H-XN09W ~	F ~	SH M12X1.75X35 ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	FDA ~	02 ~	IS$$503698204801033 ~	50.00~	10~	10~	10~	6162685
14D-F45XNW 14100-32R-09	FACE MILL ~	100.00	14	32.00	85.00	55.00	112.00	5.00	A	2.87	9.00~	0.00~	45.0~	~	C2H-XN09W ~	XF ~	SH M16X2.0X35 ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	FDA ~	02 ~	IS$$503698204801033 ~	55.00~	14~	14~	14~	6308474
14D-F45XNW 18125-40R-09	FACE MILL ~	125.00	18	40.00	85.00	63.00	137.00	5.00	B	3.84	9.00~	0.00~	45.0~	~	C2H-XN09W ~	XF ~	- ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	FDA ~	02 ~	IS$$503698204801033 ~	63.00~	18~	18~	18~	3110881
14D-F45XNW 18160-40R-09	FACE MILL ~	160.00	18	40.00	110.00	63.00	172.00	5.00	C	5.60	9.00~	0.00~	45.0~	~	C2H-XN09W ~	F ~	- ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	SPK ~	02 ~	IS$$503698204801033 ~	63.00~	18~	18~	18~	6108716
14D-F45XNW 22160-40R-09	FACE MILL ~	160.00	22	40.00	110.00	63.00	172.00	5.00	C	5.57	9.00~	0.00~	45.0~	~	C2H-XN09W ~	XF ~	- ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	SPK ~	02 ~	IS$$503698204801033 ~	63.00~	22~	22~	22~	6308477
14D-F45XNW 28200-60R-09	FACE MILL ~	200.00	28	60.00	130.00	63.00	212.00	5.00	C	7.86	9.00~	0.00~	45.0~	~	C2H-XN09W ~	XF ~	- ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	SPK ~	02 ~	IS$$503698204801033 ~	63.00~	28~	28~	28~	6308478
14D-F45XNW 36250-60R-09	FACE MILL ~	250.00	36	60.00	160.00	63.00	262.00	5.00	C	12.71	9.00~	0.00~	45.0~	~	C2H-XN09W ~	XF ~	- ~	71E01A05B627B ~	XNHU 0906 ANTN-MM	SPK ~	02 ~	IS$$503698204801033 ~	63.00~	36~	36~	36~	3110884
