TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

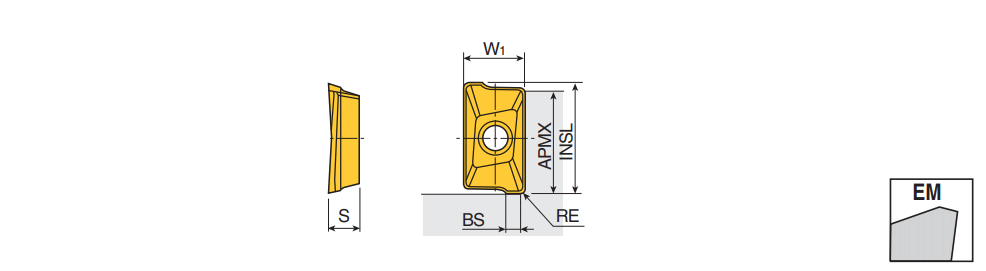

APKT 09T3 R-EM : Various corner radii inserts of APKT 09 with two helical cutting edges for general machining in 90° shoulders

Designation	INSL	W1	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	Fig.	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 09T332R-EM	9.72	6.20	3.80	-	3.20	8.80	9.00~	2~	CM-AP09 ~	2.50	7.50	0.150	0.050	5~	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$722879627813535 ~	APKT 09 ~	0~	6126917	3	TT8080 TT9080 TT2510
APKT 09T320R-EM	9.80	6.20	3.80	0.50	2.00	8.80	9.00~	2~	CM-AP09 ~	2.50	7.50	0.150	0.050	5~	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$722879627813535 ~	APKT 09 ~	0~	6126916	3	TT8080 TT9080 TT2510
APKT 09T305R-EM	10.54	6.20	3.80	1.10	0.50	8.80	9.00~	2~	CM-AP09 ~	2.50	7.50	0.150	0.050	5~	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT8020~	IS$$722879627813535 ~	APKT 09 ~	0~	5616387	1	TT8020
APKT 09T316R-EM	10.55	6.20	3.80	0.70	1.60	8.80	9.00~	2~	CM-AP09 ~	2.50	7.50	0.150	0.050	5~	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$722879627813535 ~	APKT 09 ~	0~	6126915	7	TT8020 TT8080 TT7080 TT9030 TT9080 TT6080 TT2510
APKT 09T308R-EM	10.58	6.20	3.80	1.00	0.80	8.80	9.00~	2~	CM-AP09 ~	2.50	7.50	0.150	0.050	5~	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$722879627813535 ~	APKT 09 ~	0~	6126914	7	TT8020 TT8080 TT7080 TT9030 TT9080 TT6080 TT2510
