TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

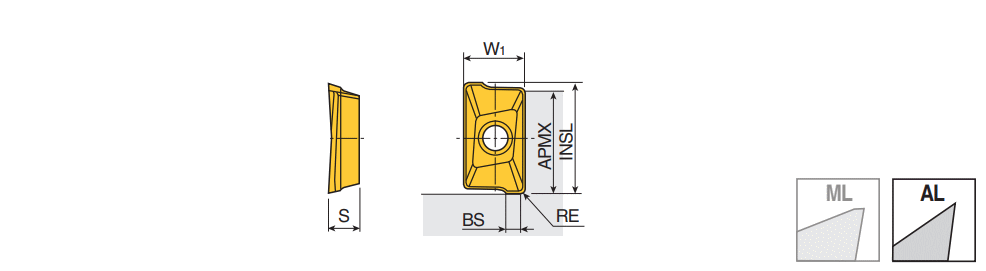

APCT 09T3 PER-AL : High positive ground inserts with 2 cutting edges & polished top for machining of aluminum & non-ferrous materials in 90° shoulders

Designation	INSL	W1	BS	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
APCT 09T3 PER-AL	9.82	6.20	0.85	3.80	0.40	8.80	9.00~	2.50	7.50	0.350	0.050	M4 ~	CM-AP09 ~	2~	A ~	71DD68D91938A ~	U10 ~	AL ~	K10 ~	IS$$722879627813535 ~	APCT 09 ~	0~	5614662		1		K10
