ANHX 11/16 R-ML : Double sided ground inserts with 4 helical positive cutting edges for 90° shouldering

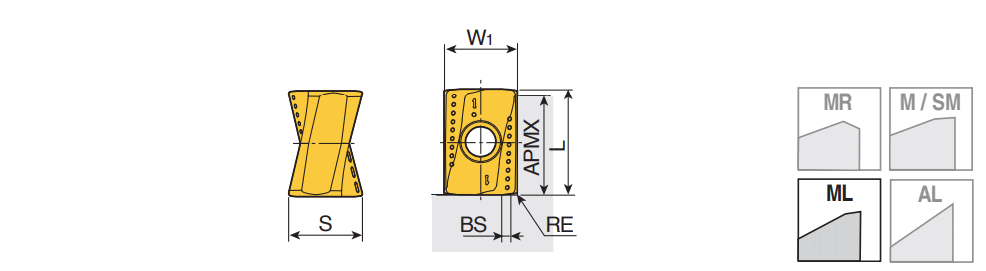

Designation	L	W1	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ANHX 160708R-ML	16.00	11.00	10.60	1.30	0.80	15.00	16.00~	4~	C2M-AN16 ~	4.50	12.00	0.120	0.060	M6 ~	A ~	71DD68D91938A ~	G40 ~	ML ~	TT8020~	IS$$671076056717965 ~	ANM(H)X 16 ~	0~	5616042		2		TT8020 TT8080
