TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

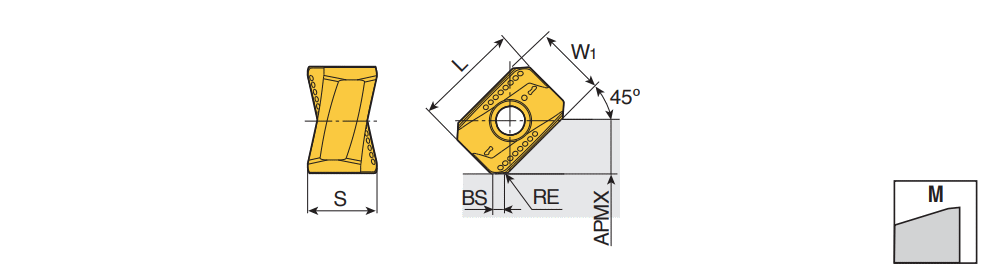

ANHX 1607 ANR-M : Double-sided ground inserts with 4 helical cutting edges for 45° face mills

Designation	L	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ANHX 1607 ANR-M	16.00	11.00	10.40	1.60	1.00	8.40	16.00~	2.50	7.00	0.300	0.150	M8 ~	4~	C2M-AN16AN ~	A ~	71DD68D91938A ~	G60 ~	M ~	8525B ~	IS$$95874843722052 ~	ANM(H)X 16 ~	0~	6338554		5		TT8080 TT8525B TT7080 TT9080 TT6080
