TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TE90AN-M-11 : 90° Modular end mills with T-FLEXTEC adaptation & four helical cutting edges of double-sided inserts AN 11

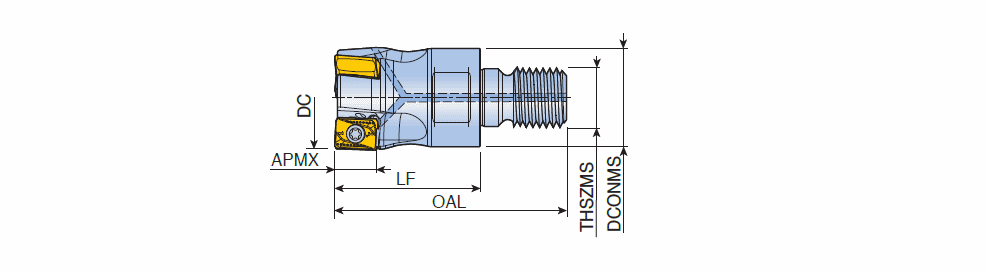

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
TE90AN 225-M12-11	MODULAR ~	25.00	2	21.00	35.00	57.00	M12	11.10	11.00~	1.50~	0.11	90.0~	~	~	C ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	SAI ~	02 ~	IS$$394832874564720 ~	35.00~	0~	2~	2~	3108145
TE90AN 332-M16-11	MODULAR ~	32.00	3	29.00	43.00	68.00	M16	11.10	11.00~	1.10~	0.23	90.0~	~	~	RC ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	SAI ~	02 ~	IS$$394832874564720 ~	43.00~	0~	3~	3~	3108146
TE90AN 440-M16-11	MODULAR ~	40.00	4	29.00	43.00	68.00	M16	11.10	11.00~	0.80~	0.29	90.0~	~	~	RF ~	C2M-AN11 ~	71E01A05D27A8 ~	ANHX 110608R-M	O ~	SAI ~	02 ~	IS$$394832874564720 ~	43.00~	0~	4~	4~	3108147
