TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

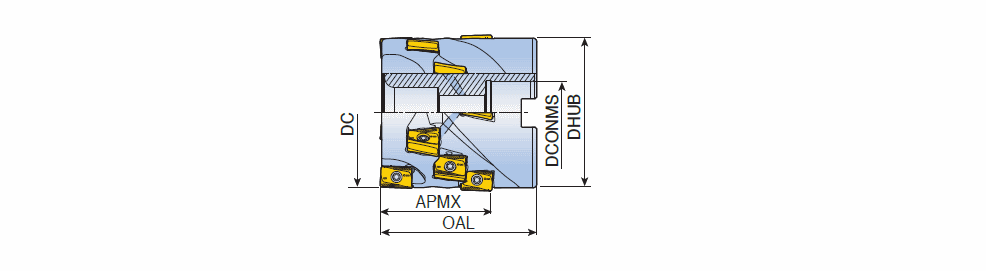

TES-AN11 : Extended flute shell mills with 4 helical cutting edges of double-sided inserts AN 11

Designation	Tool sty	DC	NOF	CICT	OAL	DCONMS	DHUB	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TES D50-40-22R-AN11	EXTENDED FLUTE ~	50.00	3	12	60.00	22.00	45.00	40.00	A	0.59	11.00~	0.60~	90.0~	~	C ~	C2M-AN11 ~	SH M10X1.5X40 ~	71E01A05B627B ~	ANHX 110608R-M	O ~	FDA ~	02 ~	IS$$394832874564720 ~	59.95~	3~	3~	3108080
TES D50-40-22R-AN11-4F	EXTENDED FLUTE ~	50.00	4	16	60.00	22.00	45.00	40.00	A	0.60	11.00~	0.60~	90.0~	~	C ~	C2M-AN11 ~	SH M10X1.5X40 ~	71E01A05B627B ~	ANHX 110608R-M	O ~	FDA ~	02 ~	IS$$394832874564720 ~	60.00~	4~	4~	6134841
TES D63-60-27R-AN11	EXTENDED FLUTE ~	63.00	4	24	80.00	27.00	60.00	60.00	A	1.34	11.00~	0.40~	90.0~	~	C ~	C2M-AN11 ~	SH M12X1.75X60 ~	71E01A05B627B ~	ANHX 110608R-M	O ~	FDA ~	02 ~	IS$$394832874564720 ~	80.00~	4~	4~	3108081
TES D80-60-32R-AN11-4F	EXTENDED FLUTE ~	80.00	4	24	80.00	32.00	76.00	60.00	A	2.20	11.00~	0.30~	90.0~	~	C ~	C2M-AN11 ~	SH M16X2.0X60 ~	71E01A05B627B ~	ANHX 110608R-M	O ~	FDA ~	02 ~	IS$$394832874564720 ~	80.00~	4~	4~	6134842
TES D80-60-32R-AN11-6F	EXTENDED FLUTE ~	80.00	6	36	80.00	32.00	76.00	60.00	A	2.40	11.00~	0.30~	90.0~	~	C ~	C2M-AN11 ~	SH M16X2.0X60 ~	71E01A05B627B ~	ANHX 110608R-M	O ~	FDA ~	02 ~	IS$$394832874564720 ~	80.00~	6~	6~	6134843

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
