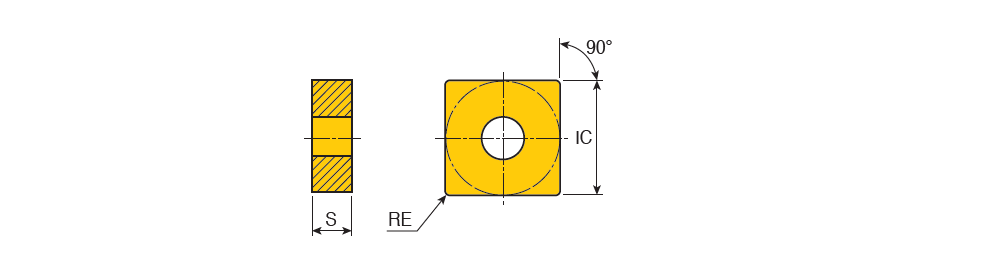

SNMG-FG : Negative Square inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120404 FG	12.70	4.76	0.40	12.70~	FG ~	90~	0.00~	0.50	3.00	0.07	0.20	8~	~	U ~	S ~	71DD68D829217 ~	Cermet ~	8125B ~	2~	ISO$SN1204042NB$$04 ~	120404 ~	SNMG ~	Y ~	~	6245003		4		TT5100 TT8125B TT5080 CT3000
SNMG 120408 FG	12.70	4.76	0.80	11.90~	FG ~	90~	0.00~	0.70	3.00	0.10	0.25	8~	~	~	S ~	71DD68D829217 ~	Cermet ~	8115B ~	2~	ISO$SN1204082NB$$08 ~	432 FG ~	SNMG ~	Y ~	12 ~	6212985		4		TT8125B TT8115B CT3000 PV3010

Click the Better Suggestions icon to see more choices.
