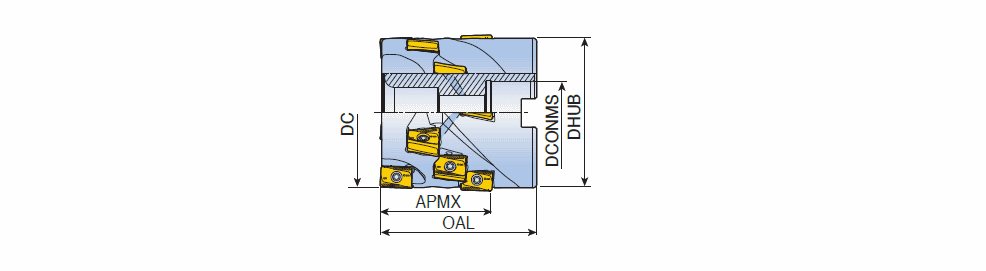

TES-AN16 : Extended flute shell mills with 4 helical cutting edges of double-sided inserts AN 11

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TES D50-42-22R-AN16	EXTENDED FLUTE ~	50.00	2	6	22.00	47.00	65.00	42.00	A	0.55	16.00~	0.80~	90.0~	~	C ~	C2M-AN16 ~	SH M10X1.5X40 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	65.00~	2~	2~	3106733
TES D63-42-27R-AN16	EXTENDED FLUTE ~	63.00	3	9	27.00	60.50	70.00	42.00	A	1.01	16.00~	0.60~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X50 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	70.00~	3~	3~	3109968
TES D63-42-27R-AN16-4F	EXTENDED FLUTE ~	63.00	4	12	27.00	60.50	70.00	42.00	A	0.96	16.00~	0.60~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X50 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	70.00~	4~	4~	6134837
TES D63-56-27R-AN16	EXTENDED FLUTE ~	63.00	3	12	27.00	60.50	80.00	56.00	A	1.14	16.00~	0.60~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X50 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	80.00~	3~	3~	3107535
TES D63-56-27R-AN16-4F	EXTENDED FLUTE ~	63.00	4	16	27.00	60.50	80.00	56.00	A	1.08	16.00~	0.60~	90.0~	~	C ~	C2M-AN16 ~	SH M12X1.75X50 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	80.00~	4~	4~	6131615
TES D80-56-32R-AN16	EXTENDED FLUTE ~	80.00	4	16	32.00	76.50	80.00	56.00	A	2.05	16.00~	0.45~	90.0~	~	C ~	C2M-AN16 ~	SH M16X2.0X50 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	80.00~	4~	4~	3106767
TES D100-69-40R-AN16	EXTENDED FLUTE ~	100.00	5	25	40.00	96.40	100.00	69.00	A	4.08	16.00~	0.35~	90.0~	~	C ~	C2M-AN16 ~	SH M20X2.5X60 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	100.00~	5~	5~	3107547
TES D100-69-40R-AN16-4F	EXTENDED FLUTE ~	100.00	4	20	40.00	96.40	100.00	69.00	A	4.09	16.00~	0.35~	90.0~	~	C ~	C2M-AN16 ~	SH M20X2.5X60 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	100.00~	4~	4~	6134838
TES D100-69-40R-AN16-6F	EXTENDED FLUTE ~	100.00	6	30	40.00	96.40	100.00	69.00	A	3.95	16.00~	0.35~	90.0~	~	C ~	C2M-AN16 ~	SH M20X2.5X60 ~	71E01A05B627B ~	ANHX 160708R-M	O ~	FDA ~	02 ~	IS$$671076056717965 ~	100.00~	6~	6~	6134839

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
