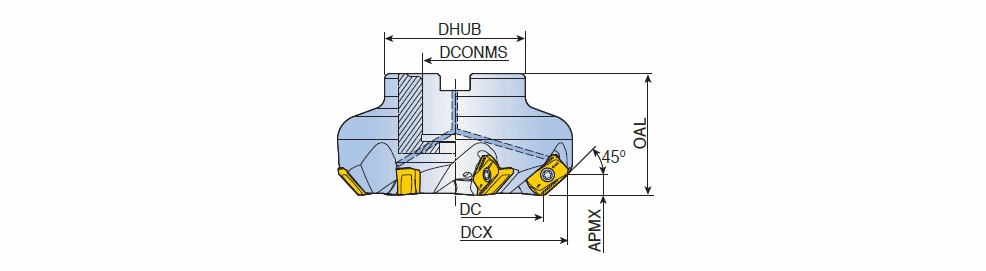

TFM45AN-R-16 : 45° Face mills with 4 positive helical cutting edges of double-sided inserts AN 16


  DesignationTool sty DC CICT DCONMS DHUB OAL DCX APMX Arbor   S1 KAPR HAND RMPX PD Insert Mtg. Ref ClssID MIID CCTMS CCFMS IIC LTA ZEFF ZEFP ZNP GICATGIREMgiicGICODE
  TFM45AN 450-22R-16 FACE MILL ~50.00422.0045.0040.0067.808.40A O 0.6016.00~45.0~ ~0.80~RC ~C2M-AN16AN ~LH M10X1.5X25 ~71E01A05B627B ~ANHX 1607 ANR-M FDA ~02 ~IS$$95874843722052 ~40.00~4~4~4~6162498 0
  TFM45AN 663-22R-16 FACE MILL ~63.00622.0047.0040.0080.608.40A O 0.9016.00~45.0~ ~0.60~RF ~C2M-AN16AN ~LH M10x1.5x25 ~71E01A05B627B ~ANHX 1607 ANR-M FDA ~02 ~IS$$95874843722052 ~40.00~6~6~6~6162499 0
  TFM45AN 780-27R-16 FACE MILL ~80.00727.0058.0050.0097.488.40A O 1.6416.00~45.0~ ~0.45~RF ~C2M-AN16AN ~SH M12X1.75X35 ~71E01A05B627B ~ANHX 1607 ANR-M FDA ~02 ~IS$$95874843722052 ~50.00~7~7~7~6162500 0
  TFM45AN 8100-32R-16 FACE MILL ~100.00832.0085.0050.00117.538.40A O 2.4916.00~45.0~ ~0.35~RF ~C2M-AN16AN ~LH M16X2.0X35 ~71E01A05B627B ~ANHX 1607 ANR-M FDA ~02 ~IS$$95874843722052 ~50.00~8~8~8~6162501 0
  TFM45AN 9125-40R-16 FACE MILL ~125.00940.0085.0063.00142.618.40A O 4.3016.00~45.0~ ~0.25~RF ~C2M-AN16AN ~SH M20X2.5X40 ~71E01A05B627B ~ANHX 1607 ANR-M FDA ~02 ~IS$$95874843722052 ~63.00~9~9~9~3106284 0
  TFM45AN 10160-40R-16 FACE MILL ~160.001040.00110.0063.00177.708.40C X 5.7716.00~45.0~ ~0.15~RC ~C2M-AN16AN ~- ~71E01A05B627B ~ANHX 1607 ANR-M SPK ~02 ~IS$$95874843722052 ~63.00~10~10~10~3108521 0
Standard 90° Inserts of ANH(M)X 16 can not be mounted
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
