APCT 1204 R-ML : Positive ground AP 12 inserts with sharp helical cutting edges for machining of exotic materials & super alloys for 90° shoulders

TT3540&TT9540 : Available upon customer request.

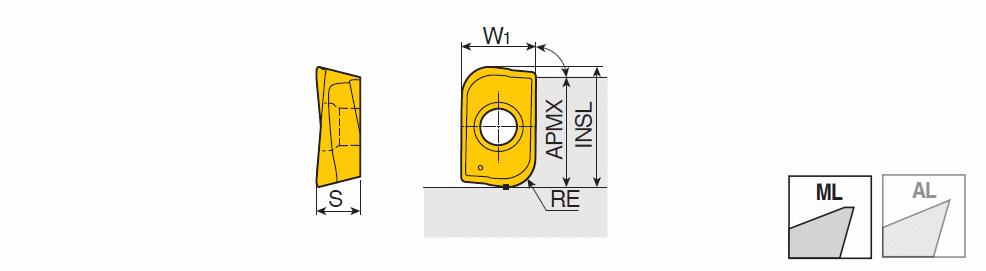

Designation	INSL	W1	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APCT 120440R-ML	13.00	8.30	4.75	4.00	11.80	12.00~	3.50	9.50	0.080	0.040	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U40 ~	ML ~	TT8080~	IS$$767790992606676 ~	APCT 12 ~	0~	5615872	2	TT8080 TT9080
APCT 120432R-ML	13.20	8.30	4.81	3.20	11.90	12.00~	3.50	10.00	0.080	0.040	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U40 ~	ML ~	TT8080~	IS$$767790992606676 ~	APCT 12 ~	0~	5615594	2	TT8080 TT9080
APCT 120430R-ML	13.30	8.30	4.81	3.00	11.90	12.00~	3.50	10.00	0.080	0.040	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U40 ~	ML ~	TT3520~	IS$$767790992606676 ~	APCT 12 ~	0~	6246061	3	TT3540 TT3520 TT9080
