TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

MINSL (SLEEVE) : Sleeves for TOPMICRO mini carbide bars of 4 & 7 mm

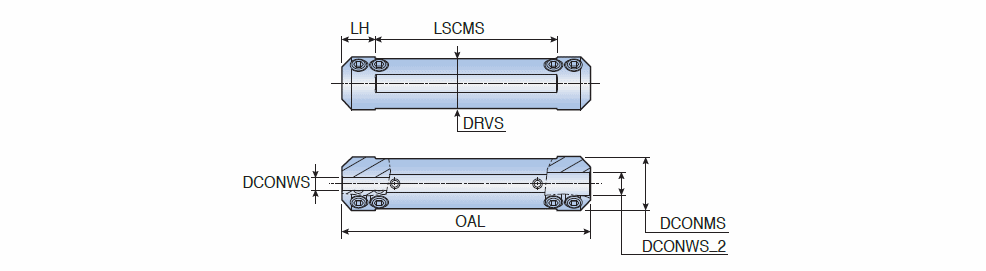

Designation	DCONMS	DCONWS	DCONWS_2	OAL	LH	LSCMS	DRVS	S1	S. Std.	L2		ClssID	GICAT
MINSL 12-4-4	12.00	4.00	4.00	75.00	13.00	49.00	10.3	4.00~	CYL ~	75.00~	X ~	71EAD385E51A0 ~	6860956
MINSL 14-4-4	14.00	4.00	4.00	75.00	13.00	49.00	12.0	4.00~	CYL ~	75.00~	X ~	71EAD385E51A0 ~	6860950
MINSL 16-4-7	16.00	4.00	7.00	75.00	10.00	55.00	15.0	7.00~	CYL ~	75.00~	X ~	71EAD385E51A0 ~	6860951
MINSL 19-4-7	19.05	4.00	7.00	89.00	10.00	69.00	17.2	7.00~	CYL ~	0.00~	X ~	71EAD385E51A0 ~	6860952
MINSL 20-4-7	20.00	4.00	7.00	90.00	10.00	70.00	18.0	7.00~	CYL ~	90.00~	X ~	71EAD385E51A0 ~	6860953
MINSL 22-4-7	22.00	4.00	7.00	90.00	10.00	70.00	20.0	7.00~	CYL ~	90.00~	X ~	71EAD385E51A0 ~	6860954
MINSL 25-4-7	25.00	4.00	7.00	90.00	10.00	70.00	23.4	7.00~	CYL ~	100.00~	X ~	71EAD385E51A0 ~	6860955
