TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

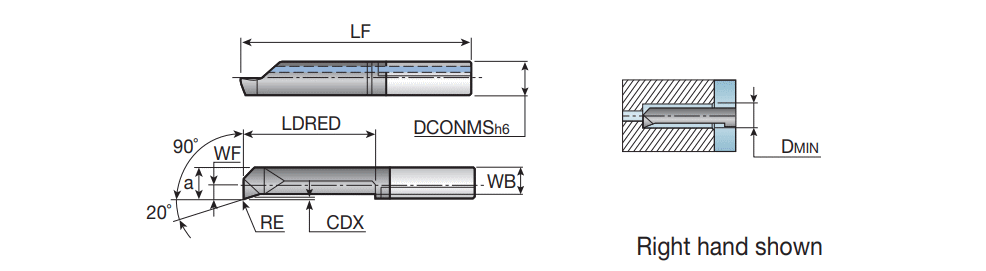

MINP R 04/07 : MINP: Mini carbide bars for internal turning and profiling in Dmin = 2.8 - 5.0 mm

Designation	DCONMS	WF	a	WB	l1	LDRED	RE	CDX	DMIN	HAND	S1	Tool typ	R	ap (min)	ap (max)	ft (min)	ft (max)	ClssID	CEDC	COATP		GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MINPR04-090010D028	4.00	0.90	2.60	2.2	25.50	10.5	0.10	0.20	2.80	R	4.00~	ROUND ~	0.005~	0.00~	0.20~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861065	1	TT9030
MINPR04-150010D028	4.00	0.90	2.60	2.2	31.50	16.5	0.10	0.20	2.80	R	4.00~	ROUND ~	0.005~	0.00~	0.30~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861093	1	TT9030
MINPR04-090010D040	4.00	1.50	3.50	2.9	25.50	10.5	0.10	0.30	4.00	R	4.00~	ROUND ~	0.005~	0.00~	0.20~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861025	1	TT9030
MINPR04-150010D040	4.00	1.50	3.50	2.9	31.50	16.5	0.10	0.30	4.00	R	4.00~	ROUND ~	0.005~	0.00~	0.30~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861048	1	TT9030
MINPR07-140015D050	7.00	0.90	4.40	3.7	30.00	15.0	0.15	0.50	5.00	R	7.00~	ROUND ~	0.005~	0.00~	0.50~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861049	1	TT9030
MINPR07-190015D050	7.00	0.90	4.40	3.7	35.00	20.0	0.15	0.50	5.00	R	7.00~	ROUND ~	0.005~	0.00~	0.50~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861094	1	TT9030
