TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

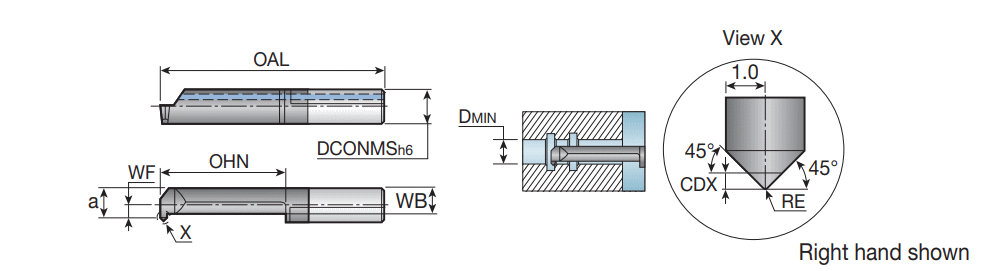

MINC R 07 : MINC: Mini carbide bars for internal turning and 45 chamfering in Dmin = 5.0 - 6.8 mm

Designation	DCONMS	WF	a	WB	OAL	LDRED	RE	CDX	DMIN	HAND	S1	Tool typ	R	ap (min)	ap (max)	ft (min)	ft (max)	ClssID	CEDC	COATP		GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MINCR07-140020D050	7.00	0.90	4.40	3.2	30.00	15.0	0.20	0.70	5.00	R	7.00~	ROUND ~	0.005~	0.00~	0.70~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861029	1	TT9030
MINCR07-190020D050	7.00	0.90	4.40	3.2	35.00	20.0	0.20	0.70	5.00	R	7.00~	ROUND ~	0.005~	0.00~	0.70~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861057	1	TT9030
MINCR07-190020D068	7.00	2.80	6.30	3.8	35.00	20.0	0.20	0.70	6.80	R	7.00~	ROUND ~	0.005~	0.00~	0.70~	0.01~	0.08~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861013	1	TT9030
