Parting & Grooving
Main Application

MINF R 07-D150 : MINF: Mini carbide bars for deep face grooving of Dmin = 15 mm


 COOLANT

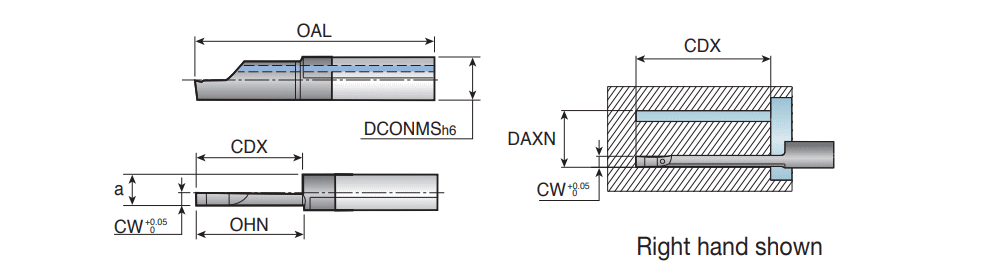

  DesignationDCONMS CW a OAL OHN CDX DAXN HAND S1 Tool typ R ffg
(min) 		ffg
(max) 		ap
(min) 		ap
(max) 		ClssID CEDC COATP  GRDMFG GICATGIREMgiicGICODEGrade & Vc     Click on grade for cutting speed value
  MINFR07 200250D150 7.002.505.9036.0021.020.0015.00R 7.00~ROUND ~0.005~0.01~0.04~0.00~20.00~71E01A0E9CBA9 ~1~PVD ~O ~TT9030~6861075 1 TT9030
  MINFR07 200300D150 7.003.005.9036.0021.020.0015.00R 7.00~ROUND ~0.005~0.01~0.04~0.00~20.00~71E01A0E9CBA9 ~1~PVD ~O ~TT9030~6861032 1 TT9030
  MINFR07 300300D150 7.003.005.9046.0031.030.0015.00R 7.00~ROUND ~0.005~0.01~0.04~0.00~30.00~71E01A0E9CBA9 ~1~PVD ~O ~TT9030~6861076 1 TT9030
The corner radius is less than 0.1mm
