Home Page > Parting & Grooving > > MINS R 07-D060

Parting & Grooving
Main Application

Related Holder

MINS R 07-D060 : MINS: Mini carbide bars for grooving along shaft in Dmin 6.0 mm

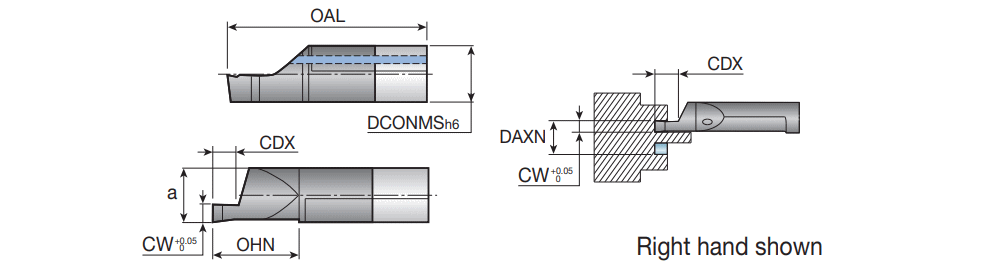

Designation	DCONMS	CW	a	OAL	OHN	CDX	DAXN	HAND	S1	Tool typ	R	ap (min)	ap (max)	fg (min)	fg (max)	ClssID	CEDC	COATP		GRDMFG	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
MINSR07-200200D060	7.00	2.00	5.20	36.00	21.0	4.00	6.00	R	7.00~	ROUND ~	0.005~	0.00~	4.00~	0.01~	0.05~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861120		1		TT9030

The corner radius is less than 0.1mm
