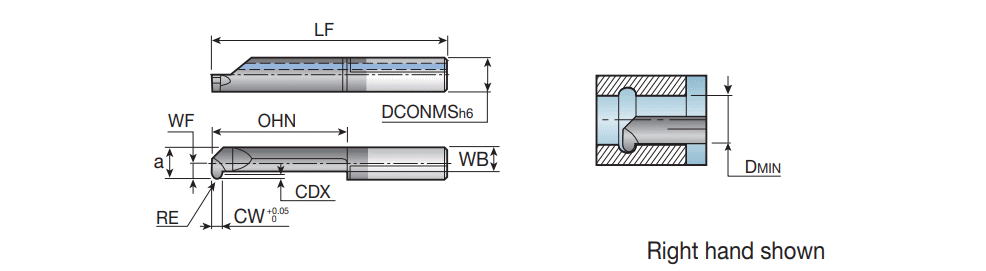

MINR R 07-D050/068 (RADIUS) : MINR: Mini carbide bars with full radius for internal boring and profiling in Dmin = 5.0 - 6.8 mm

Designation	DCONMS	CW	WF	a	WB	RE	l1	OHN	CDX	DMIN	HAND	S1	Tool typ	R	ClssID	CEDC	COATP		GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MINRR07-190050D050	7.00	1.00	0.90	4.40	3.1	0.50	35.00	20.0	1.00	5.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861026	1	TT9030
MINRR07-240050D060	7.00	1.00	1.80	5.30	3.2	0.50	40.00	25.0	1.80	6.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861066	1	TT9030
MINRR07-290050D068	7.00	1.00	2.80	6.30	3.6	0.50	45.00	30.0	2.50	6.80	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861067	1	TT9030

The corner radius is less than 0.1mm
