TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

MINB R 04/07 : MINB: Mini carbide bars for internal back turning in Dmin = 3.0 - 7.0 mm

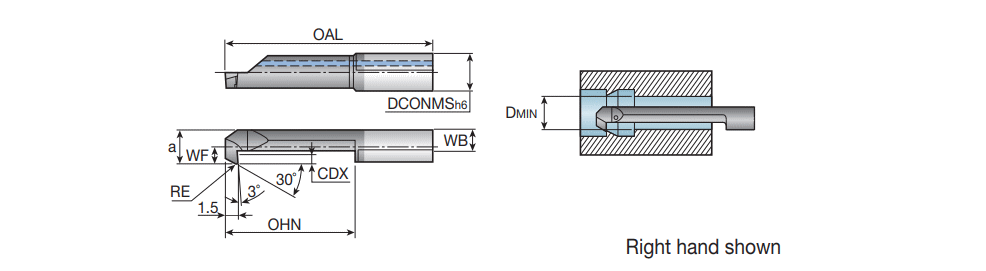

Designation	DCONMS	WF	a	WB	OAL	OHN	RE	CDX	DMIN	HAND	S1	Tool typ	R	ClssID	CEDC	COATP		GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MINBR04-140020D030	4.00	0.60	2.60	1.8	30.00	15.0	0.20	0.50	3.00	R	4.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861072	1	TT9030
MINBR04-190020D030	4.00	0.60	2.60	1.8	35.00	20.0	0.20	0.50	3.00	R	4.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861110	1	TT9030
MINBR04-140015D040	4.00	1.50	3.50	2.4	30.00	15.0	0.15	0.80	4.00	R	4.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861008	1	TT9030
MINBR04-240015D040	4.00	1.50	3.50	2.4	40.00	25.0	0.15	0.80	4.00	R	4.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861056	1	TT9030
MINBR07-190020D050	7.00	0.90	4.40	3.1	35.00	20.0	0.20	1.00	5.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861111	1	TT9030
MINBR07-290020D050	7.00	0.90	4.40	3.1	45.00	28.5	0.20	1.30	5.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861044	1	TT9030
MINBR07-190020D060	7.00	1.80	5.30	3.2	35.00	20.0	0.20	1.80	6.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861009	1	TT9030
MINBR07-290020D060	7.00	1.80	5.30	3.2	45.00	30.0	0.20	1.80	6.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861088	1	TT9030
MINBR07-190020D070	7.00	2.80	6.30	3.5	35.00	20.0	0.20	2.50	7.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861043	1	TT9030
MINBR07-290020D070	7.00	2.80	6.30	3.5	45.00	30.0	0.20	2.50	7.00	R	7.00~	ROUND ~	0.005~	71E01A0E9CBA9 ~	1~	PVD ~	O ~	TT9030~	6861073	1	TT9030
