TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

XCMT ...R-GV : TOPCAP inserts for grooving

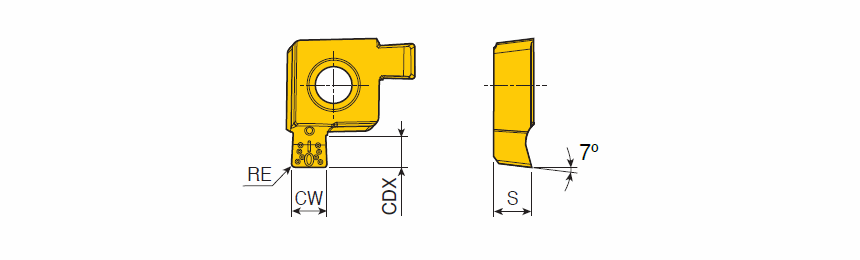

Designation	CW	CDX	RE	S	S1	CBMD	SC	HAND	ClssID	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
XCMT 05R-200020GV	2.00	1.80	0.20	2.27	5.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525471588988 ~	5580669	2	TT8020 TT9080
XCMT 06R-200020GV	2.00	2.00	0.20	2.62	6.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525487606636 ~	6318390	2	TT8020 TT9080
XCMT 07R-250020GV	2.50	2.00	0.20	3.42	7.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525503624290 ~	5580671	2	TT8020 TT9080
XCMT 08R-250020GV	2.50	2.50	0.20	3.50	8.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525519641950 ~	5580672	2	TT8020 TT9080
XCMT 10R-300030GV	3.00	3.00	0.30	4.37	10.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525535659616 ~	5580673	2	TT8020 TT9080
XCMT 13R-350030GV	3.50	3.50	0.30	5.24	13.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525551677288 ~	5580674	2	TT8020 TT9080
XCMT 17R-400040GV	4.00	4.00	0.40	6.06	17.00~	GV ~	X ~	R ~	71DDA089C8D1E ~	TT8020~	IS$$20525567694966 ~	5580675	2	TT8020 TT9080

Grooving insert is available only for right handed type
