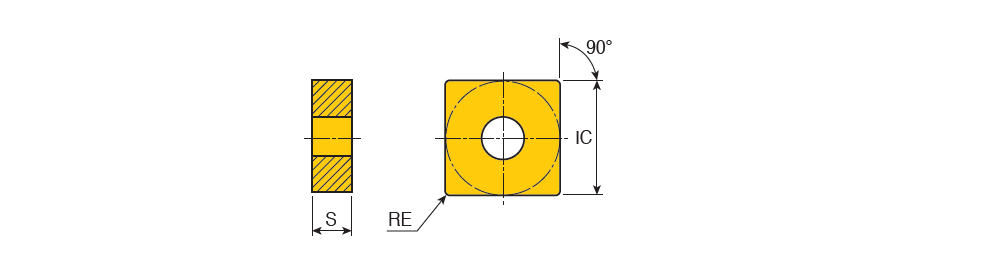

SNMG-MP : Negative Square inserts for medium machining of steels & stainless steels

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120404 MP	12.70	4.76	0.40	12.70~	MP ~	90~	0.00~	0.80	4.00	0.10	0.30	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5100~	2~	ISO$SN1204042NB$$04 ~	431 MP ~	SNMG ~	Y ~	12 ~	6199035	Type B chip breaker	3	TT8020 TT8080 TT5100
SNMG 120408 MP	12.70	4.76	0.80	12.70~	MP ~	90~	0.00~	1.00	4.00	0.12	0.40	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1204082NB$$08 ~	432 MP ~	SNMG ~	Y ~	12 ~	6212880		8	TT8020 TT9235 TT9080 TT9225 TT5100 TT8125B TT5080 TT9215
SNMG 120412 MP	12.70	4.76	1.20	12.70~	MP ~	90~	0.00~	1.30	4.00	0.15	0.40	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1204122NB$$12 ~	433 MP ~	SNMG ~	Y ~	12 ~	5523086		3	TT9225 TT5100 TT5080
SNMG 150608 MP	15.88	6.35	0.80	15.88~	MP ~	90~	0.00~	1.50	6.00	0.25	0.60	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1506082NB$$08 ~	542 MT ~	SNMG ~	Y ~	~	6248469		1	TT8115B
