TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMG-RT : Negative Square inserts for rough machining of steels and cast irons with very strong rake geometry

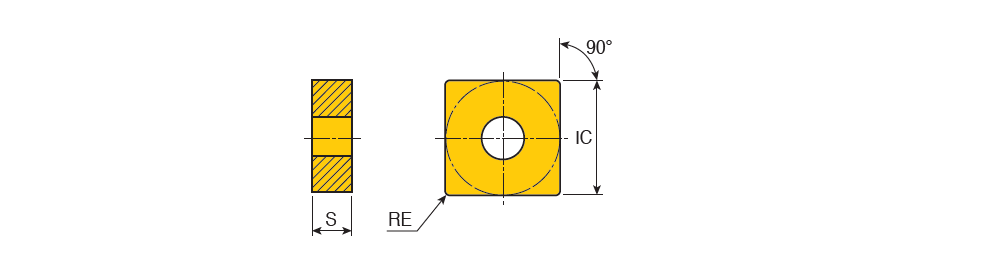

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 RT	12.70	4.76	0.80	12.70~	RT ~	90~	0.00~	2.50	6.00	0.25	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1204082NB$$08 ~	432 RT ~	SNMG ~	Y ~	12 ~	6212567		5	TT8020 TT5100 TT8125B TT7015 TT7005
SNMG 120412 RT	12.70	4.76	1.20	12.70~	RT ~	90~	0.00~	2.50	6.00	0.30	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8105B ~	2~	ISO$SN1204122NB$$12 ~	433 RT ~	SNMG ~	Y ~	12 ~	6241731		5	TT9235 TT8115B TT8105B TT7015 TT7005
SNMG 120416 RT	12.70	4.76	1.60	11.10~	RT ~	90~	0.00~	2.50	6.00	0.40	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1204162NB$$16 ~	434 RT ~	SNMG ~	Y ~	12 ~	6212449		3	TT8020 TT8125B TT8115B
SNMG 150612 RT	15.88	6.35	1.20	15.88~	RT ~	90~	0.00~	3.00	7.00	0.30	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8135B ~	2~	ISO$SN1506122NB$$12 ~	543 RT ~	SNMG ~	Y ~	15 ~	6213129		4	TT8020 TT8135B TT5100 TT7015
SNMG 190612 RT	19.05	6.35	1.20	19.05~	RT ~	90~	0.00~	3.00	9.00	0.30	0.75	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1906122NB$$12 ~	643 RT ~	SNMG ~	Y ~	19 ~	6213175		9	TT9235 TT8135B TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B TT7005
SNMG 190616 RT	19.05	6.35	1.60	19.05~	RT ~	90~	0.00~	3.00	9.00	0.40	0.90	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1906162NB$$16 ~	644 RT ~	SNMG ~	Y ~	19 ~	6241340	Type B chip breaker	8	TT8020 TT9235 TT7100 TT8135B TT9225 TT5100 TT8125B TT5080
SNMG 250924 RT	25.40	9.52	2.40	25.40~	RT ~	90~	0.00~	5.00	12.00	0.40	1.00	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN2509242NB$$24 ~	866 RT ~	SNMG ~	Y ~	25 ~	6241934		3	TT8135B TT8125B TT5080

Click the Better Suggestions icon to see more choices.
