TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMG-EM : Negative Square inserts for medium machining of stainless steels

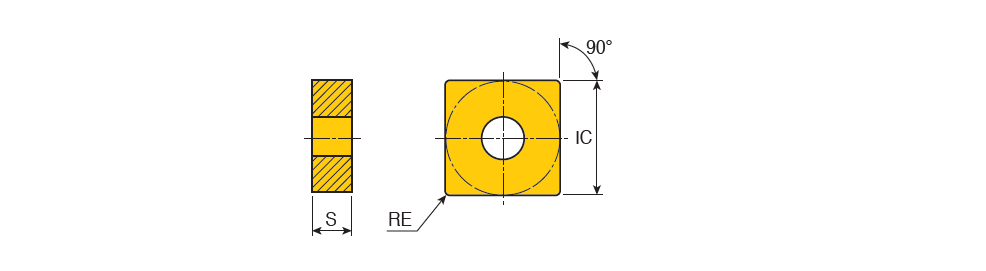

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 EM	12.70	4.76	0.80	12.70~	EM ~	90~	0.00~	0.80	5.00	0.13	0.50	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1204082NB$$08 ~	432 EM ~	SNMG ~	Y ~	12 ~	5523184	5	TT9235 TT9080 TT9225 TT5080 TT9215
SNMG 120412 EM	12.70	4.76	1.20	12.70~	EM ~	90~	0.00~	0.80	5.00	0.15	0.55	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1204122NB$$12 ~	433 EM ~	SNMG ~	Y ~	12 ~	5523185	5	TT9235 TT9080 TT9225 TT5080 TT9215
SNMG 150612 EM	15.88	6.35	1.20	15.88~	EM ~	90~	0.00~	0.80	6.50	0.15	0.55	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1506122NB$$12 ~	543 EM ~	SNMG ~	Y ~	15 ~	5523275	4	TT9235 TT9225 TT5080 TT9215
SNMG 150616 EM	15.88	6.35	1.60	15.88~	EM ~	90~	0.00~	0.80	6.50	0.17	0.60	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1506162NB$$16 ~	544 EM ~	SNMG ~	Y ~	15 ~	6134308	5	TT9235 TT9080 TT9225 TT5080 TT9215
SNMG 190612 EM	19.05	6.35	1.20	19.05~	EM ~	90~	0.00~	0.80	8.00	0.15	0.55	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1906122NB$$12 ~	643 EM ~	SNMG ~	Y ~	19 ~	5523262	4	TT9235 TT9225 TT5080 TT9215
SNMG 190616 EM	19.05	6.35	1.60	19.05~	EM ~	90~	0.00~	0.80	8.00	0.17	0.60	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1906162NB$$16 ~	644 EM ~	SNMG ~	Y ~	19 ~	6134309	5	TT9235 TT9080 TT9225 TT5080 TT9215
