TaeguTec Cutting Tools - Metal Working Tools - Turning -

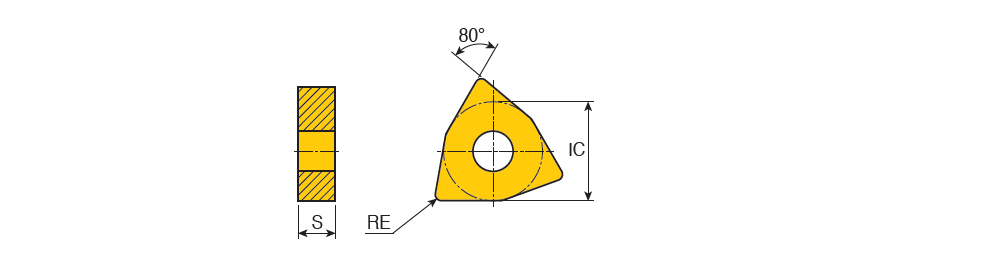

WNMG-EM : Negative 80° Trigon inserts for medium machining of stainless steels

Designation	l	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060408 EM	6.52~	9.52	4.76	0.80	EM ~	80~	0.00~	0.80	3.00	0.13	0.50	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0604082NB$$08 ~	332 EM ~	WNMG ~	Y ~	6 ~	6183671	6	TT8080 TT9235 TT9080 TT9225 TT5080 TT9215
WNMG 060412 EM	6.52~	9.52	4.76	1.20	EM ~	80~	0.00~	0.80	3.00	0.15	0.55	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0604122NB$$12 ~	333 EM ~	WNMG ~	Y ~	6 ~	5523194	4	TT9080 TT9225 TT5080 TT9215
WNMG 080404 EM	8.70~	12.70	4.76	0.40	EM ~	80~	0.00~	0.80	4.00	0.10	0.45	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804042NB$$04 ~	431 EM ~	WNMG ~	Y ~	8 ~	6174921	6	TT8080 TT9235 TT9080 TT9225 TT5080 TT9215
WNMG 080408 EM	8.70~	12.70	4.76	0.80	EM ~	80~	0.00~	0.80	4.00	0.12	0.45	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804082NB$$08 ~	432 EM ~	WNMG ~	Y ~	8 ~	6176749	6	TT8080 TT9235 TT9080 TT9225 TT5080 TT9215
WNMG 080412 EM	8.70~	12.70	4.76	1.20	EM ~	80~	0.00~	0.80	4.00	0.12	0.45	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804122NB$$12 ~	433 EM ~	WNMG ~	Y ~	8 ~	5523188	5	TT9235 TT9080 TT9225 TT5080 TT9215
