TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMM-RH : Negative single-sided Square inserts for roughing of steel, stainless steel & cast iron with very strong rake geometry

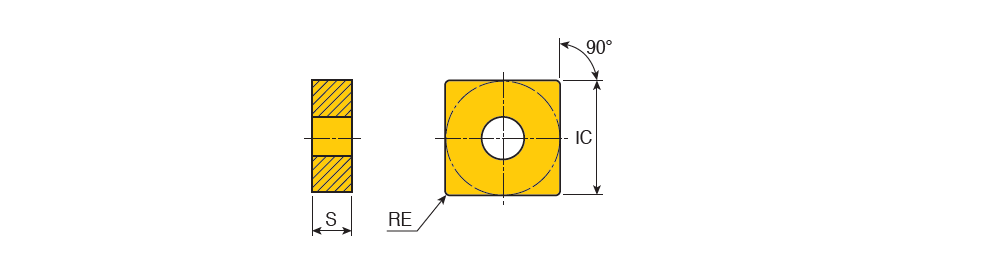

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMM 120408 RH	12.70	4.76	0.80	11.90~	RH ~	90~	0.00~	2.50	6.00	0.30	0.70	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1204082NB$$08 ~	432 RH ~	SNMM ~	Y ~	12 ~	6212427	2	TT5100 TT8125B
SNMM 120412 RH	12.70	4.76	1.20	11.50~	RH ~	90~	0.00~	2.50	6.00	0.30	0.80	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1204122NB$$12 ~	433 RH ~	SNMM ~	Y ~	12 ~	6212330	2	TT5100 TT8125B
SNMM 150612 RH	15.88	6.35	1.20	14.60~	RH ~	90~	0.00~	3.00	7.00	0.30	0.80	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1506122NB$$12 ~	543 RH ~	SNMM ~	Y ~	15 ~	6213813	2	TT5100 TT8125B
SNMM 190612 RH	19.05	6.35	1.20	17.80~	RH ~	90~	0.00~	4.00	9.00	0.30	0.80	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1906122NB$$12 ~	643 RH ~	SNMM ~	Y ~	19 ~	6212334	3	TT9225 TT5100 TT8125B
SNMM 190616 RH	19.05	6.35	1.60	17.40~	RH ~	90~	0.00~	4.00	9.00	0.45	1.00	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8135B ~	2~	ISO$SN1906162NB$$16 ~	644 RH ~	SNMM ~	Y ~	19 ~	6213136	6	TT8020 TT9235 TT7100 TT8135B TT9225 TT5100
SNMM 190624 RH	19.05	6.35	2.40	16.60~	RH ~	90~	0.00~	4.00	9.00	0.55	1.20	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1906242NB$$24 ~	646 RH ~	SNMM ~	Y ~	19 ~	6212429	2	TT5100 TT8125B
