TaeguTec Cutting Tools - Metal Working Tools - Turning -

TCGT-SA : Positive ground triangular inserts from finishing to medium machining of small components

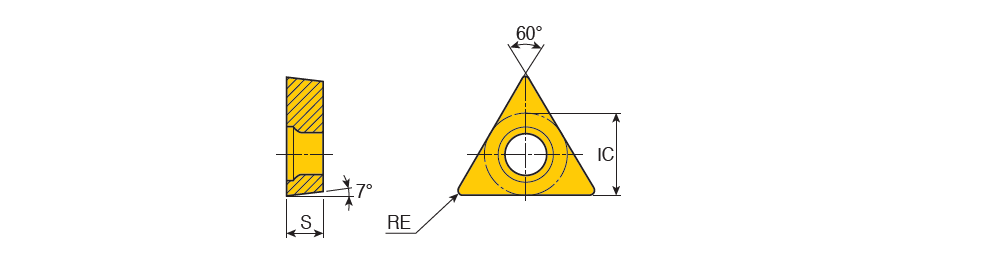

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TCGT 110201 SA	6.35	2.38	0.10	11.00~	SA ~	60~	7.00~	0.10	2.50	0.01	0.05	3~	P ~	~	T ~	71DD68D8446CE ~	PVD ~	TT5080~	3~	ISO$TC1102013NB$$01 ~	21.50 ~	TCGT ~	Y ~	5523213	2	TT9020 TT5080
TCGT 110202 SA	6.35	2.38	0.20	11.00~	SA ~	60~	7.00~	0.20	2.50	0.02	0.15	3~	P ~	~	T ~	71DD68D8446CE ~	PVD ~	TT5080~	3~	ISO$TC1102023NB$$02 ~	21.50. ~	TCGT ~	Y ~	5523214	2	TT9020 TT5080
TCGT 110204 SA	6.35	2.38	0.40	11.00~	SA ~	60~	7.00~	0.20	2.50	0.03	0.20	3~	P ~	~	T ~	71DD68D8446CE ~	PVD ~	TT5080~	3~	ISO$TC1102043NB$$04 ~	21.51 ~	TCGT ~	Y ~	5523215	2	TT9020 TT5080
