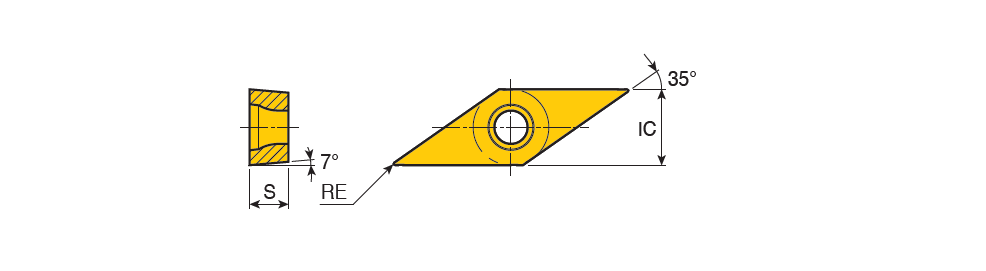

VCGT-SA 11 : Positive ground 35° Rhombic inserts from finishing to medium machining of small components

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VCGT 110301 SA	6.35	3.18	0.10	11.10~	SA ~	35~	7.00~	0.10	1.50	0.01	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT5080~	3~	ISO$VC1103013NB$$01 ~	220 SA ~	VCGT ~	Y ~	5523219	2	TT9020 TT5080
VCGT 110302 SA	6.35	3.18	0.20	11.10~	SA ~	35~	7.00~	0.20	1.50	0.02	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT5080~	3~	ISO$VC1103023NB$$02 ~	220.5 ~	VCGT ~	Y ~	5523220	2	TT9020 TT5080
VCGT 110304 SA	6.35	3.18	0.40	11.10~	SA ~	35~	7.00~	0.20	1.50	0.05	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	TT5080~	3~	ISO$VC1103043NB$$04 ~	221 SA ~	VCGT ~	Y ~	5523221	2	TT9020 TT5080
