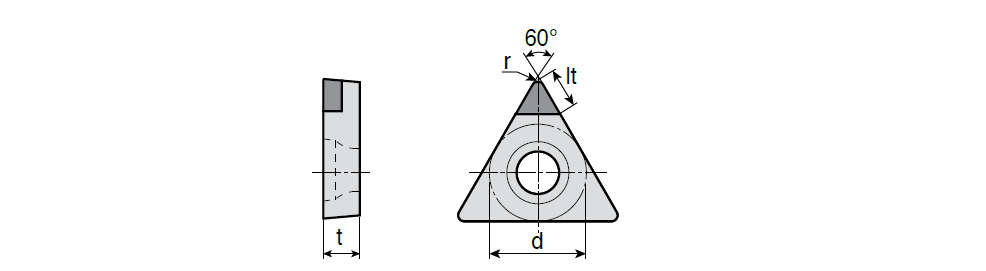

TPGW-CBN : Positive 60° Triangular inserts with CBN tips for finishing of hardened steels and cast irons

Designation	d	t	r	lt	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	l	SC	S1	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TPGW 080204 LS3	4.76	2.38	0.40	2.10	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	8.00~	T ~	802.00~	71DD68D8446CE ~	CBN ~	TB670 ~	3~	ISO$TP0802043NA$$04 ~	631 LS ~	TPGW ~	Y ~	8 ~	5403093	1	TB670
TPGW 090204 LS3	5.56	2.38	0.40	2.30	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	9.60~	T ~	902.00~	71DD68D8446CE ~	CBN ~	TB670 ~	3~	ISO$TP0902043NA$$04 ~	731 LS ~	TPGW ~	Y ~	9 ~	5403171	2	TB730 TB670
TPGW 090208 LS3	5.56	2.38	0.80	2.00	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	9.60~	T ~	902.00~	71DD68D8446CE ~	CBN ~	TB670 ~	3~	ISO$TP0902083NA$$08 ~	732 LS ~	TPGW ~	Y ~	9 ~	5403095	1	TB670
TPGW 110302 LS3	6.35	3.18	0.20	2.80	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP1103023NA$$02 ~	220.5 ~	TPGW ~	Y ~	11 ~	5403016	1	TB610
TPGW 110304 LS	6.35	3.18	0.40	2.60	60~	11.00~	0.05	0.50	0.05	0.30	1~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN ~	TB650 ~	3~	ISO$TP1103043NA$$04 ~	221 LS ~	TPGW ~	Y ~	11 ~	5403096	2	TB670 TB650
TPGW 110304 LS3	6.35	3.18	0.40	2.60	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP1103043NA$$04 ~	221 LS ~	TPGW ~	Y ~	11 ~	5403173	2	TB730 TB610
TPGW 110308 LS3	6.35	3.18	0.80	2.30	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN ~	TB670 ~	3~	ISO$TP1103083NA$$08 ~	222 LS ~	TPGW ~	Y ~	11 ~	5403097	1	TB670
TPGW 110308 LS3-SL	6.35	3.18	0.80	2.10	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN+PVD ~	TB2215~	3~	ISO$TP1103083NA$$08 ~	222 LS ~	TPGW ~	Y ~	11 ~	6309708	1	TB2215
TPGW 110308 LS3-SM	6.35	3.18	0.80	2.10	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	1103.00~	71DD68D8446CE ~	CBN+PVD ~	TB2215~	3~	ISO$TP1103083NA$$08 ~	222 LS ~	TPGW ~	Y ~	11 ~	6309300	1	TB2215
TPGW 160404 LS3	9.52	4.76	0.40	2.80	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	16.50~	T ~	1604.00~	71DD68D8446CE ~	CBN ~	TB670 ~	3~	ISO$TP1604043NA$$04 ~	331 LS ~	TPGW ~	Y ~	16 ~	5403098	1	TB670

LS: Small size CBN tip
LS3: Small size CBN tip with three corners
