TaeguTec Cutting Tools - Metal Working Tools - Turning -

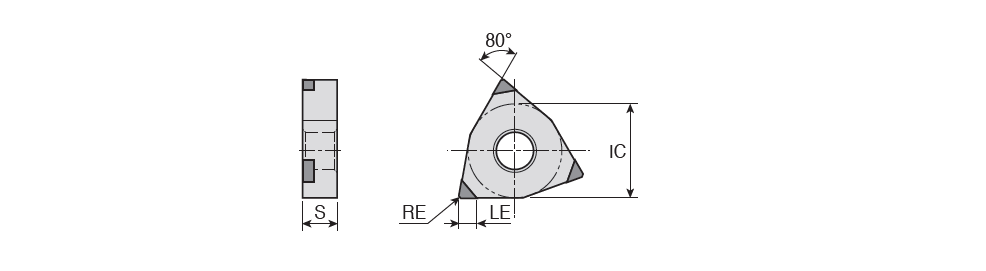

WNGA-CBN : Negative 80° Trigon inserts with CBN tips for finishing of hardened steels

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNGA 060408 LS6-WZ	2.10	9.52	4.76	0.80	80~	0.00~	0.05	0.50	0.05	0.30	6~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB670 ~	2~	ISO$WN0604082NA$$08 ~	332 LS ~	WNGA ~	Y ~	6 ~	5403116	1	TB670
WNGA 080408 LS3	2.10	12.70	4.76	0.80	80~	0.00~	0.10	0.50	0.05	0.20	3~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB670 ~	2~	ISO$WN0804082NA$$08 ~	432 LS ~	WNGA ~	Y ~	8 ~	5403111	1	TB670
WNGA 080408 LS6	2.10	12.70	4.76	0.80	80~	0.00~	0.10	0.50	0.05	0.20	6~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB670 ~	2~	ISO$WN0804082NA$$08 ~	432 LS ~	WNGA ~	Y ~	8 ~	5403112	1	TB670
WNGA 080408 WZ-LS3	2.10	12.70	4.76	0.80	80~	0.00~	0.05	0.50	0.05	0.30	3~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB610 ~	2~	ISO$WN0804082NA$$08 ~	432 WZ ~	WNGA ~	Y ~	8 ~	5403113	3	TB670 TB650 TB610
WNGA 080408 WZ-LS6	2.10	12.70	4.76	0.80	80~	0.00~	0.05	0.50	0.05	0.30	6~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB670 ~	2~	ISO$WN0804082NA$$08 ~	432 WZ ~	WNGA ~	Y ~	8 ~	5403114	1	TB670
WNGA 080412 WZ-LS3	2.10	12.70	4.76	1.20	80~	0.00~	0.05	0.50	0.05	0.30	3~	P ~	U ~	8.70~	W ~	71DD68D73218C ~	CBN ~	TB670 ~	2~	ISO$WN0804122NA$$12 ~	433 WZ ~	WNGA ~	Y ~	8 ~	5403115	1	TB670

WZ-LS3/LS6: Wiper geometry
LS3: Small size CBN tip with three corners
LS6: Small size CBN tip with six corners
