TaeguTec Cutting Tools - Metal Working Tools - Turning -

RPGN-CERAMIC : Positive Round ground Ceramic inserts without hole for high temperature alloys machining

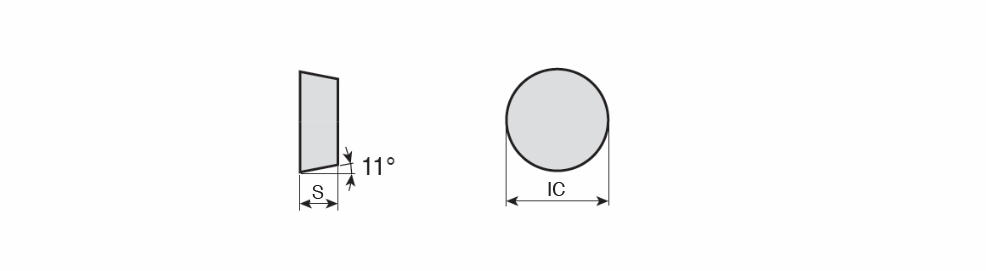

Designation	IC	S	ap (min)	ap (max)	ft (min)	ft (max)	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RPGN 090300 E	9.52	3.18	0.10	3.00	0.05	0.30	R ~	71D1AA6635E76 ~	11.00~	Ceramic ~	TC430 ~	3~	ISO$RP0903003NA$$00 ~	2 E ~	RPG ~	Y ~	~	5703529	1	TC430
RPGN 120400 E	12.70	4.76	0.10	4.00	0.05	0.35	R ~	71D1AA6635E76 ~	11.00~	Ceramic ~	TC3020~	3~	ISO$RP1204003NA$$00 ~	3 T6 ~	RPG ~	Y ~	12 ~	6182049	2	TC3030 TC3020
RPGN 120400 T6	12.70	4.76	0.10	4.00	0.05	0.35	R ~	71D1AA6635E76 ~	11.00~	Ceramic ~	TC3020~	3~	ISO$RP1204003NA$$00 ~	3 T6 ~	RPG ~	Y ~	12 ~	6182047	3	TC3030 TC3020 TC430

E : Honing without T-land
CH : Dimple type
