TaeguTec Cutting Tools - Metal Working Tools - Turning -

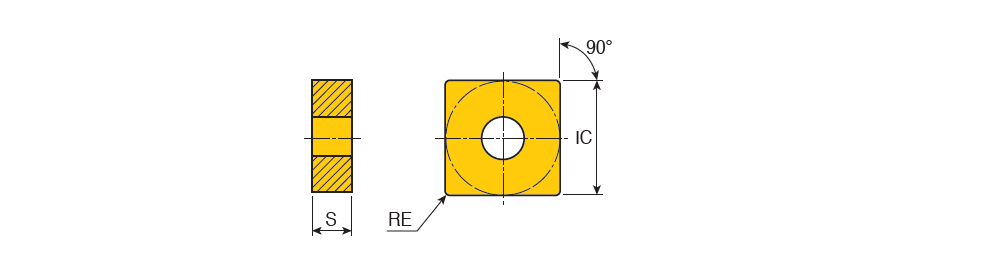

SNMG-FC : Negative Square inserts for finish turning and facing of low carbon steel and low carbon alloy steel

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SNMG 120404 FC	12.70	4.76	0.40	12.70~	FC ~	90~	0.00~	0.20	2.50	0.05	0.30	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT9225~	2~	ISO$SN1204042NB$$04 ~	431 FC ~	SNMG ~	Y ~	12 ~	5521492		1		TT9225
SNMG 120412 FC	12.70	4.76	1.20	12.70~	FC ~	90~	0.00~	0.30	2.50	0.10	0.40	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT9225~	2~	ISO$SN1204122NB$$12 ~	433 FC ~	SNMG ~	Y ~	12 ~	5521509		1		TT9225

Click the Better Suggestions icon to see more choices.
