TaeguTec Cutting Tools - Metal Working Tools - Turning -

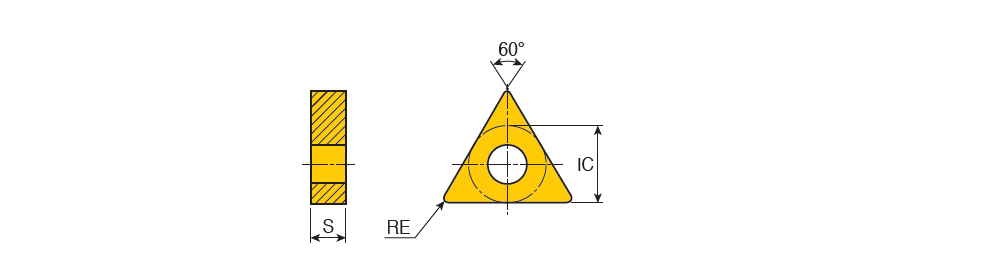

TNMG-EA : Negative 60° Triangular inserts for finishing of exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 160404 EA	9.52	4.76	0.40	16.50~	EA ~	60~	0.00~	0.10	1.50	0.05	0.20	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT5080~	2~	ISO$TN1604042NB$$04 ~	331 EA ~	TNMG ~	Y ~	16 ~	6177638		6		TT8080 TT9235 TT9080 TT9225 TT5080 TT9215
TNMG 160408 EA	9.52	4.76	0.80	16.50~	EA ~	60~	0.00~	0.10	1.50	0.10	0.40	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT5080~	2~	ISO$TN1604082NB$$08 ~	332 EA ~	TNMG ~	Y ~	16 ~	5523177		4		TT9080 TT9225 TT5080 TT9215
