TaeguTec Cutting Tools - Metal Working Tools - Turning -

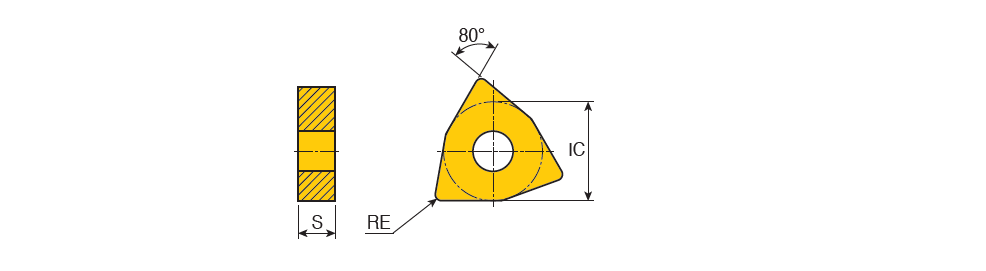

WNMG-EA : Negative 80° Trigon inserts for finishing of exotic materials with excellent chip control at low feeds & low depth of cut

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080404 EA	12.70	4.76	0.40	8.70~	EA ~	80~	0.00~	0.10	1.50	0.05	0.20	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804042NB$$04 ~	431 EA ~	WNMG ~	Y ~	8 ~	6174920		6		TT8080 TT9235 TT9080 TT9225 TT5080 TT9215
WNMG 080408 EA	12.70	4.76	0.80	8.70~	EA ~	80~	0.00~	0.10	1.50	0.10	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT9080~	2~	ISO$WN0804082NB$$08 ~	432 EA ~	WNMG ~	Y ~	8 ~	5522891		3		TT9080 TT9225 TT9215
