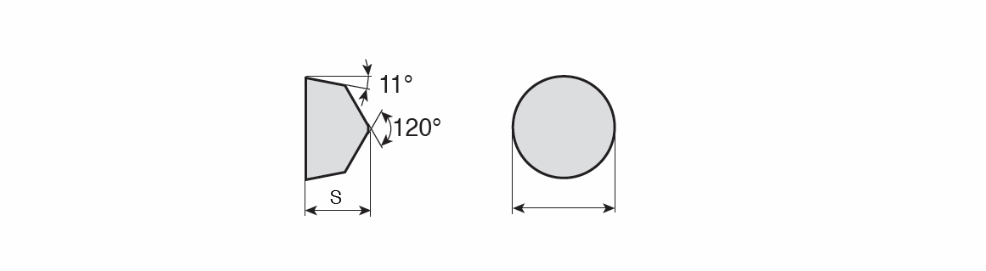

RPGX-CERAMIC : Positive round ground Ceramic inserts with 11° clearance angle & V shape bottom for high temperature alloys machining

Designation	IC	S	SC	ClssID	ap (min)	ap (max)	ft (min)	ft (max)	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RPGX 060400 T6	6.35	4.76	R ~	71D1AA6635E76 ~	0.10	3.00	0.05	0.25	11.00~	Ceramic ~	TC3030~	3~	ISO$RP0604003NA$$00 ~	35 T6 ~	RPGX ~	Y ~	6306336	1	TC3030
RPGX 090700 E	9.52	7.94	R ~	71D1AA6635E76 ~	0.10	3.00	0.05	0.35	11.00~	Ceramic ~	TC3020~	3~	ISO$RP0907003NA$$00 ~	35 E ~	RPGX ~	Y ~	6149220	2	TC3030 TC3020
RPGX 090700 T6	9.52	7.94	R ~	71D1AA6635E76 ~	0.10	3.00	0.05	0.35	11.00~	Ceramic ~	TC3020~	3~	ISO$RP0907003NA$$00 ~	35 T6 ~	RPGX ~	Y ~	6158920	2	TC3030 TC3020
RPGX 120700 E	12.70	7.94	R ~	71D1AA6635E76 ~	0.10	4.00	0.05	0.35	11.00~	Ceramic ~	TC3020~	3~	ISO$RP1207003NA$$00 ~	45 E ~	RPGX ~	Y ~	6149222	2	TC3030 TC3020
RPGX 120700 T6	12.70	7.94	R ~	71D1AA6635E76 ~	0.10	4.00	0.05	0.35	11.00~	Ceramic ~	TC3020~	3~	ISO$RP1207003NA$$00 ~	45 T6 ~	RPGX ~	Y ~	6158922	3	TC3030 TC3020 TC430

E : Honing without T-land
T6: Land 0.10 x 20°
