TaeguTec Cutting Tools - Metal Working Tools - Turning -

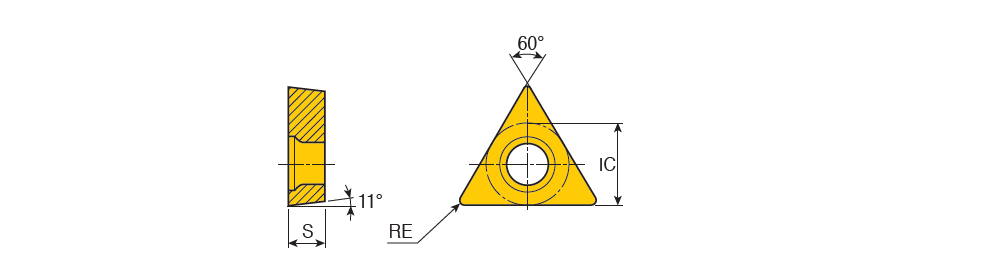

TPMT-PC : Positive Triangular inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	S1	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TPMT 090204 PC	5.56	2.38	0.40	9.60~	PC ~	60~	11.00~	0.30	2.00	0.06	0.18	3~	~	U ~	T ~	902.00~	71DD68D8446CE ~	CVD ~	TT5080~	3~	ISO$TP0902043NB$$04 ~	1.81.5 ~	TPMT ~	Y ~	9 ~	6139546	4	TT9225 TT5100 TT5080 TT9215
TPMT 110204 PC	6.35	2.38	0.40	11.00~	PC ~	60~	11.00~	0.40	2.50	0.06	0.20	3~	~	~	T ~	1102.00~	71DD68D8446CE ~	PVD ~	TT5080~	3~	ISO$TP1102043NB$$04 ~	21.51 ~	TPMT ~	Y ~	11 ~	5523149	1	TT5080
TPMT 110208 PC	6.35	2.38	0.80	11.00~	PC ~	60~	11.00~	0.50	2.50	0.10	0.26	3~	~	~	T ~	1102.00~	71DD68D8446CE ~	CVD ~	TT5080~	3~	ISO$TP1102083NB$$08 ~	21.52 ~	TPMT ~	Y ~	11 ~	6139548	4	TT9225 TT5100 TT5080 TT9215
TPMT 110304 PC	6.35	3.18	0.40	0.00~	PC ~	60~	11.00~	0.40	2.50	0.06	0.20	3~	~	~	T ~	1102.00~	71DD68D8446CE ~	CVD ~	TT5080~	3~	ISO$TP1103043NB$$04 ~	221 PC ~	TPMT ~	Y ~	11 ~	5523158	3	TT9225 TT5100 TT5080
TPMT 110308 PC	6.35	3.18	0.80	11.00~	PC ~	60~	11.00~	0.50	2.50	0.10	0.26	3~	~	U ~	T ~	1103.00~	71DD68D8446CE ~	CVD ~	8125B ~	3~	ISO$TP1103083NB$$08 ~	222 PC ~	TPMT ~	Y ~	11 ~	6212248	5	TT9225 TT5100 TT8125B TT5080 TT7015
TPMT 16T304 PC	9.52	3.97	0.40	11.00~	PC ~	60~	11.00~	0.45	3.00	0.08	0.25	3~	~	U ~	T ~	16.00~	71DD68D8446CE ~	CVD ~	TT5080~	3~	ISO$TP16T3043NB$$04 ~	32.51 ~	TPMT ~	Y ~	16 ~	6139551	3	TT9225 TT5080 TT9215
TPMT 16T308 PC	9.52	3.97	0.80	11.00~	PC ~	60~	11.00~	0.50	3.00	0.10	0.30	3~	~	U ~	T ~	16.00~	71DD68D8446CE ~	CVD ~	8125B ~	3~	ISO$TP16T3083NB$$08 ~	32.52 ~	TPMT ~	Y ~	16 ~	6212318	4	TT9225 TT8125B TT5080 TT9215
