TaeguTec Cutting Tools - Metal Working Tools - Turning -

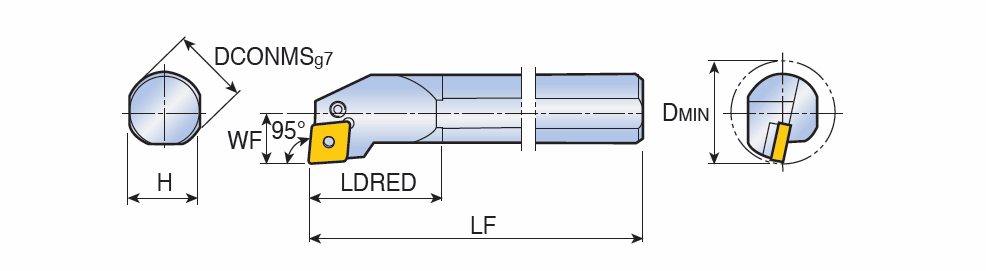

S-PCLNR/L : Lever type boring bars with 95° approach angle for negative 80° Rhombic inserts

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	IIC_2	GICAT
S25T PCLNL 12	25.00	23.0	300.00	40.0	17.00	32.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3601251
S25T PCLNR 12	25.00	23.0	300.00	40.0	17.00	32.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3601253
S32T PCLNL 12	32.00	30.0	300.00	45.0	22.00	40.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604846
S32T PCLNR 12	32.00	30.0	300.00	45.0	22.00	40.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604847
S40T PCLNL 12	40.00	37.0	300.00	55.0	27.00	50.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604898
S40T PCLNR 12	40.00	37.0	300.00	55.0	27.00	50.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604899
S50U PCLNL 12	50.00	47.0	350.00	70.0	35.00	63.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604940
S50U PCLNL 16	50.00	47.0	350.00	70.0	35.00	63.00	15.88~	6.35~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 160612	IS$$263003408226826 ~	~	3604941
S50U PCLNL 19	50.00	47.0	350.00	70.0	35.00	63.00	19.05~	6.35~	95~	95.0~	LEVER ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CNGA 190612	IS$$175467275177230 ~	IS$$331387765676730 ~	3604942
S50U PCLNR 12	50.00	47.0	350.00	70.0	35.00	63.00	12.70~	4.76~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 120408	IS$$1024254928735500 ~	IS$$799486238534200 ~	3604943
S50U PCLNR 16	50.00	47.0	350.00	70.0	35.00	63.00	15.88~	6.35~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 160612	IS$$263003408226826 ~	~	3604944
S50U PCLNR 19	50.00	47.0	350.00	70.0	35.00	63.00	19.05~	6.35~	95~	95.0~	LEVER ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CNGA 190612	IS$$175467275177230 ~	IS$$331387765676730 ~	3604945
