TaeguTec Cutting Tools - Metal Working Tools - Turning -

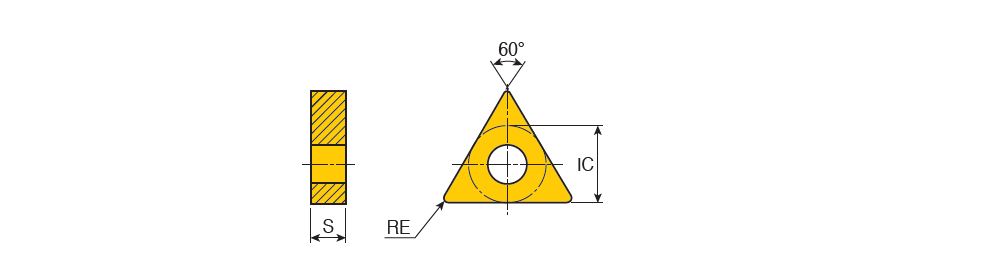

TNMG-MK (RHINO) : Negative 60° Triangular RHINOTURN inserts of medium machining of stainless steels and heat resistant materials with sharp cutting edges

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	ClssID	SC	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404 MK	7.94	4.76	0.40	13.00~	MK ~	60~	0.00~	0.70	3.00	0.17	0.40	6~	~	U ~	71DD68D8446CE ~	T ~	RHINO-TURN ~	PVD ~	TT5080~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	13 ~	6136683	2	TT9080 TT5080
TNMG 130408 MK	7.94	4.76	0.80	13.00~	MK ~	60~	0.00~	1.00	3.00	0.20	0.45	6~	~	U ~	71DD68D8446CE ~	T ~	RHINO-TURN ~	PVD ~	TT5080~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6136684	2	TT9080 TT5080
TNMG 130412 MK	7.94	4.76	1.20	13.00~	MK ~	60~	0.00~	1.50	3.00	0.23	0.50	6~	~	U ~	71DD68D8446CE ~	T ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6141232	4	TT9235 TT9080 TT9225 TT5080
