TaeguTec Cutting Tools - Metal Working Tools - Turning -

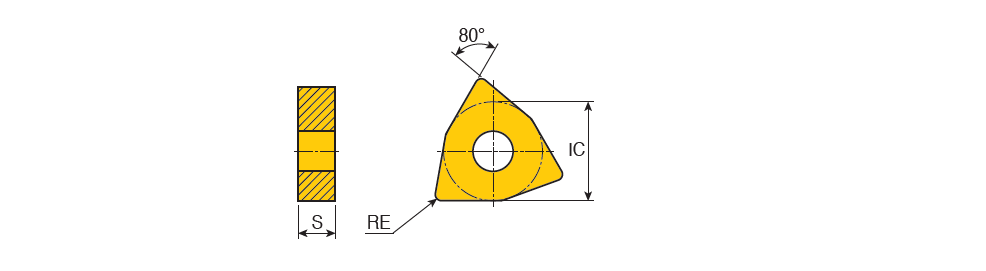

WNMX-MK (RHINO) : Negative 80° Trigon RHINOTURN inserts for medium machining of stainless steels & heat resistant materials with sharp cutting edge

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	ClssID	SC	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMX 060404 MK	9.52	4.76	0.40	6.52~	MK ~	80~	0.00~	0.70	3.00	0.17	0.40	6~	~	U ~	71DD68D73218C ~	W ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$WN0604042NA$$04 ~	331 MK ~	WNMX ~	Y ~	6 ~	6141275	3	TT9080 TT9225 TT5080
WNMX 060408 MK	9.52	4.76	0.80	6.52~	MK ~	80~	0.00~	1.00	3.00	0.20	0.45	6~	~	U ~	71DD68D73218C ~	W ~	RHINO-TURN ~	CVD ~	TT3010~	2~	ISO$WN0604082NA$$08 ~	332 MK ~	WNMX ~	Y ~	6 ~	6231455	5	TT9080 TT9225 TT3020 TT3010 TT5080
WNMX 060412 MK	9.52	4.76	1.20	6.52~	MK ~	80~	0.00~	1.50	3.00	0.23	0.50	6~	~	U ~	71DD68D73218C ~	W ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$WN0604122NA$$12 ~	333 MK ~	WNMX ~	Y ~	6 ~	6141277	3	TT9080 TT9225 TT5080
