Turning
Main Application

S-PDZNR/L : Lever type back boring bars with 93° approach angle for negative 55° Rhombic inserts

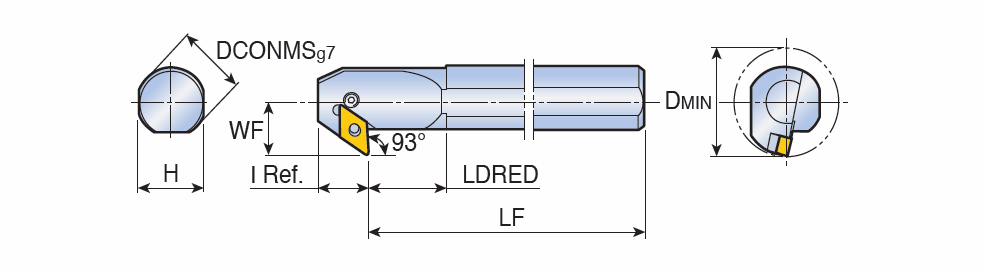

Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF F1 DMIN IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  S32T PDZNL 15 32.0030.0300.0030.025.0010.545.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~L ~71E01A0E9CBA9 ~DNGA 150608 IS$$401217296969863 ~IS$$695105559106321 ~IS$$850587966573147 ~3604851 0
  S32T PDZNR 15 32.0030.0300.0030.025.0010.545.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~R ~71E01A0E9CBA9 ~DNGA 150608 IS$$384556734858845 ~IS$$695105559106321 ~IS$$850587966573147 ~3604852 0
  S40T PDZNL 15 40.0037.0300.0035.029.0010.550.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~L ~71E01A0E9CBA9 ~DNGA 150608 IS$$401217296969863 ~IS$$695105559106321 ~IS$$850587966573147 ~3604923 0
  S40T PDZNR 15 40.0037.0300.0035.029.0010.550.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~R ~71E01A0E9CBA9 ~DNGA 150608 IS$$384556734858845 ~IS$$695105559106321 ~IS$$850587966573147 ~3604902 0
  S50U PDZNL 15 50.0047.0350.0045.035.0011.563.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~L ~71E01A0E9CBA9 ~DNGA 150608 IS$$401217296969863 ~IS$$695105559106321 ~IS$$850587966573147 ~6175159 0
  S50U PDZNR 15 50.0047.0350.0045.035.0011.563.0012.70~6.35~30~93.0~LEVER ~BORING BAR ~R ~71E01A0E9CBA9 ~DNGA 150608 IS$$384556734858845 ~IS$$695105559106321 ~IS$$850587966573147 ~3604947 0
