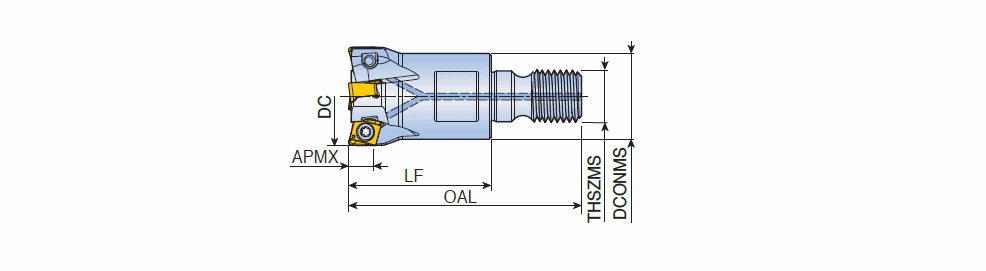

4N TE90-M-06 : 90° Modular end mills with T-FLEXTEC adaptation & unique four high positive helical cutting edges of double-sided 4NK(H)T 06 inserts & high ramping capability

Designation	Tool sty	CICT	DC	DCONMS	LF	OAL	THSZMS	APMX	S1	RMPX	PD	Insert		Pocket	ClssID	MIID	KAPR		CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
4N TE90-216-M08-06	MODULAR ~	2	16.00	13.00	23.00	40.50	M08	6.00	6.00~	3.50~	RC ~	C4M-4N06 ~	0.03	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	23.00~	0~	2~	2~	6144183
4N TE90-217-M08-06	MODULAR ~	2	17.00	13.00	23.00	40.50	M08	6.00	6.00~	3.50~	RC ~	C4M-4N06 ~	0.03	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	23.00~	0~	2~	2~	6165456
4N TE90-220-M10-06	MODULAR ~	2	20.00	18.00	35.00	55.00	M10	6.00	6.00~	4.20~	RC ~	C4M-4N06 ~	0.07	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	2~	2~	6144184
4N TE90-320-M10-06	MODULAR ~	3	20.00	18.00	35.00	55.00	M10	6.00	6.00~	4.20~	RF ~	C4M-4N06 ~	0.07	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	3~	3~	6144185
4N TE90-321-M10-06	MODULAR ~	3	21.00	18.00	35.00	55.00	M10	6.00	6.00~	4.20~	RF ~	C4M-4N06 ~	0.07	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	3~	3~	6165457
4N TE90-325-M12-06	MODULAR ~	3	25.00	21.00	35.00	57.00	M12	6.00	6.00~	4.90~	RC ~	C4M-4N06 ~	0.10	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	3~	3~	6144186
4N TE90-425-M12-06	MODULAR ~	4	25.00	21.00	35.00	57.00	M12	6.00	6.00~	4.90~	RF ~	C4M-4N06 ~	0.10	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	4~	4~	6144187
4N TE90-426-M12-06	MODULAR ~	4	26.00	21.00	35.00	57.00	M12	6.00	6.00~	4.90~	RF ~	C4M-4N06 ~	0.10	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	35.00~	0~	4~	4~	6165458
4N TE90-432-M16-06	MODULAR ~	4	32.00	29.00	43.00	68.00	M16	6.00	6.00~	3.50~	RF ~	C4M-4N06 ~	0.22	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	4~	4~	6144188
4N TE90-532-M16-06	MODULAR ~	5	32.00	29.00	43.00	68.00	M16	6.00	6.00~	3.50~	F ~	C4M-4N06 ~	0.22	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	5~	5~	6144189
4N TE90-533-M16-06	MODULAR ~	5	33.00	29.00	43.00	68.00	M16	6.00	6.00~	3.50~	F ~	C4M-4N06 ~	0.23	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	5~	5~	6165459
4N TE90-535-M16-06	MODULAR ~	5	35.00	29.00	43.00	68.00	M16	6.00	6.00~	3.50~	F ~	C4M-4N06 ~	0.24	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	5~	5~	6165460
4N TE90-540-M16-06	MODULAR ~	5	40.00	29.00	43.00	68.00	M16	6.00	6.00~	2.60~	F ~	C4M-4N06 ~	0.28	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	5~	5~	6144190
4N TE90-640-M16-06	MODULAR ~	6	40.00	29.00	43.00	68.00	M16	6.00	6.00~	2.60~	XF ~	C4M-4N06 ~	0.27	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	6~	6~	6144191
4N TE90-642-M16-06	MODULAR ~	6	42.00	29.00	43.00	68.00	M16	6.00	6.00~	0.00~	XF ~	C4M-4N06 ~	0.29	4N06-HF ~	71E01A05D27A8 ~	4NKT 060308R-M	90.0~	O ~	SAI ~	02 ~	FF ~	IS$$2186742640665936 ~	43.00~	0~	6~	6~	6210611

Cutter body for '4NKT 060320R-HF' and '4NHT 060320R-F' inserts should be modified with body corner radius 2.0 mm
