4N TF90-R-06 : 90° Face mills with unique 4 high positive helical cutting edges of double-sided 4NK(H)T 06 inserts

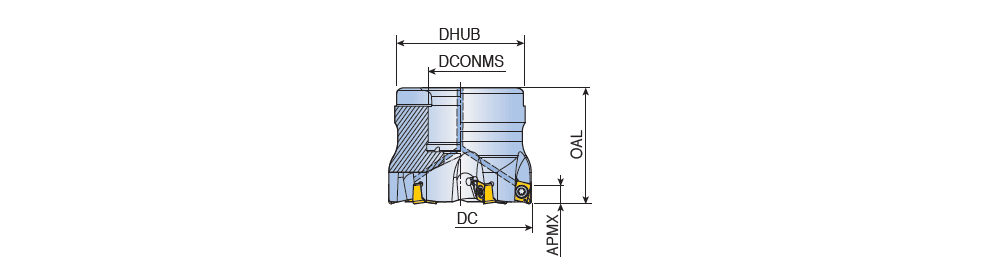

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX			S1	Arbor	KAPR	HAND	RMPX	PD	Insert	Mtg. Ref	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT
4N TF90-432-16R-06	FACE MILL ~	32.00	4	16.00	30.00	32.00	6.00	O ~	0.10	6.00~	A	90.0~	~	3.50~	RF ~	C4M-4N06 ~	SH M8X1.25X25 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	32.00~	4~	4~	6144192
4N TF90-532-16R-06	FACE MILL ~	32.00	5	16.00	30.00	32.00	6.00	O ~	0.10	6.00~	A	90.0~	~	3.50~	F ~	C4M-4N06 ~	SH M8X1.25X25 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	32.00~	5~	5~	6144193
4N TF90-540-16R-06	FACE MILL ~	40.00	5	16.00	38.00	40.00	6.00	O ~	0.24	6.00~	A	90.0~	~	2.60~	F ~	C4M-4N06 ~	SH M8X1.25X25 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	5~	5~	6144194
4N TF90-640-16R-06	FACE MILL ~	40.00	6	16.00	38.00	40.00	6.00	O ~	0.23	6.00~	A	90.0~	~	2.60~	XF ~	C4M-4N06 ~	SH M8X1.25X25 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	6~	6~	6144195
4N TF90-650-22R-06	FACE MILL ~	50.00	6	22.00	45.00	40.00	6.00	O ~	0.35	6.00~	A	90.0~	~	2.00~	RF ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	6~	6~	6127000
4N TF90-750-22R-06	FACE MILL ~	50.00	7	22.00	47.00	40.00	6.00	O ~	0.35	6.00~	A	90.0~	~	2.00~	F ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	7~	7~	6144196
4N TF90-752-22R-06	FACE MILL ~	52.00	7	22.00	47.00	40.00	6.00	O ~	0.53	6.00~	A	90.0~	~	0.00~	F ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	7~	7~	6210613
4N TF90-763-22R-06	FACE MILL ~	63.00	7	22.00	47.00	40.00	6.00	O ~	0.51	6.00~	A	90.0~	~	1.50~	RF ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	7~	7~	6144197
4N TF90-863-22R-06	FACE MILL ~	63.00	8	22.00	47.00	40.00	6.00	O ~	0.52	6.00~	A	90.0~	~	1.50~	F ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	40.00~	8~	8~	6144198
4N TF90-866-27R-06	FACE MILL ~	66.00	8	27.00	58.00	50.00	6.00	O ~	0.84	6.00~	A	90.0~	~	0.00~	RF ~	C4M-4N06 ~	SH M10X1.5X30 ~	4N06-HF ~	71E01A05B627B ~	4NKT 060308R-M	FDA ~	02 ~	FF ~	IS$$2186742640665936 ~	50.00~	8~	8~	6210615

-Table's ap and L refer to 08R insert
-Cutter body for '4NKT 060320R-HF' and '4NHT 060320R-F' inserts should be modified with body corner radius 2.0 mm
-Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
