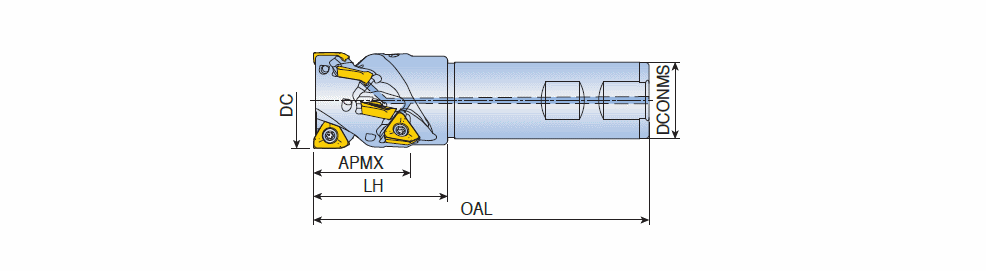

3P TEF-06 : Extended flute end mills with 3PKT 06 inserts of positive 3 helical cutting edges

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX		S1	Shank	RMPX	KAPR		PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	IIC_2	LTA	ZEFF	ZEFP	GICAT
3P TEF D20-20-W20-06	EXTENDED FLUTE ~	20.00	2	10	20.00	85.00	33.00	20.00	X	6.00~	W ~	1.60~	90.0~	0.17	C ~	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	ZYL ~	10 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	35.00~	2~	2~	6131595
3P TEF D25-24-W25-06	EXTENDED FLUTE ~	25.00	3	18	25.00	95.00	39.00	24.00	O	6.00~	W ~	1.50~	90.0~	0.29	C ~	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	ZYL ~	10 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	39.00~	3~	3~	6140598
3P TEF D32-32-W32-06	EXTENDED FLUTE ~	32.00	4	32	32.00	105.00	43.00	32.00	O	6.00~	W ~	1.20~	90.0~	0.53	C ~	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	ZYL ~	10 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	45.00~	4~	4~	6140599
