TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

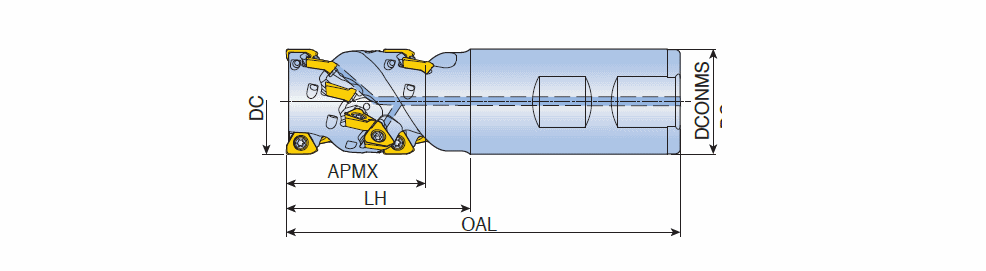

3P TEF-10 : Extended flute end mills with 3PKT 10 inserts of positive 3 helical cutting edges

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX	S1	Shank	RMPX	KAPR		PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
3P TEF D32-42-W32-10	EXTENDED FLUTE ~	32.00	2	14	32.00	120.00	56.00	42.00	10.00~	W ~	1.80~	90.0~	0.63	C ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	O ~	ZYL ~	10 ~	IS$$749292326746570 ~	60.00~	2~	2~	6140600		0
3P TEF D40-42-W32-10	EXTENDED FLUTE ~	40.00	3	21	32.00	130.00	56.00	42.00	10.00~	W ~	1.30~	90.0~	0.81	C ~	MR-3P10 ~	71E01A05D27A8 ~	3PKT 100408R-M	O ~	ZYL ~	10 ~	IS$$749292326746570 ~	70.00~	3~	3~	6140601		0
