3P TES-10 : Extended flute shell mills with 3PKT 10 inserts of positive 3 helical cutting edges

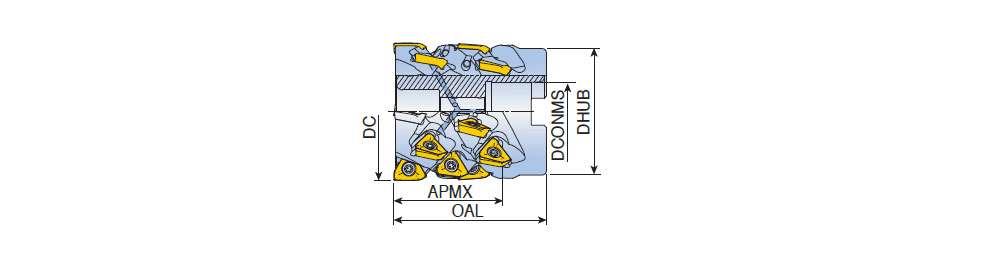

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX		S1	RMPX	KAPR	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
3P TES D50-48-22R-10	EXTENDED FLUTE ~	50.00	4	32	22.00	45.00	65.00	48.00	0.60	10.00~	1.00~	90.0~	C ~	MR-3P10 ~	SH M10X1.5X50	71E01A05B627B ~	3PKT 100408R-M	O ~	FDA ~	02 ~	IS$$749292326746570 ~	65.00~	4~	4~	6140603		0
3P TES D63-54-27R-10	EXTENDED FLUTE ~	63.00	4	36	27.00	58.00	75.00	54.00	1.20	10.00~	0.80~	90.0~	C ~	MR-3P10 ~	SH M12X1.75X50	71E01A05B627B ~	3PKT 100408R-M	O ~	FDA ~	02 ~	IS$$749292326746570 ~	75.00~	4~	4~	6140604		0

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
