TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

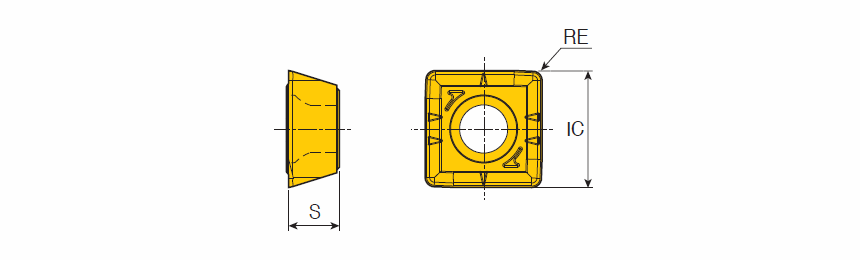

SPGX ...-DW : Precise ground 4-cornered inserts with wiper and better surface finishing for TND of big size drill

Designation	IC	S	RE	CBMD	S1	SC	ClssID	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
SPGX 060204 DW	6.07	2.38	0.40	DW ~	6.00~	S ~	71DD68D829217 ~	TT9080~	IS$$119617764633450 ~	6139077	1	TT9080
SPGX 07T308 DW	8.02	3.97	0.80	DW ~	7.00~	S ~	71DD68D829217 ~	TT9080~	IS$$159490517020978 ~	6139078	1	TT9080
SPGX 090408 DW	9.91	4.30	0.80	DW ~	9.00~	S ~	71DD68D829217 ~	TT9080~	IS$$159490719084330 ~	6130212	1	TT9080
SPGX 110408 DW	11.62	4.80	0.80	DW ~	11.00~	S ~	71DD68D829217 ~	TT9080~	IS$$358854714658485 ~	6139079	1	TT9080
SPGX 140512 DW	14.41	5.20	1.20	DW ~	14.00~	S ~	71DD68D829217 ~	TT9080~	IS$$199509715152386 ~	6140505	1	TT9080
