TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

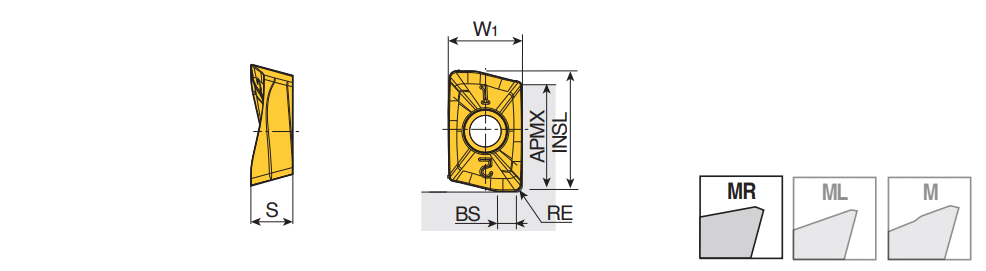

APKT 190712R-MR : Strong high positive inserts with two helical cutting edges for heavy and general milling

Designation	INSL	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 190712R-MR	21.00	13.00	7.35	2.00	1.20	17.90	19.00~	5.00	15.00	0.250	0.100	M10 ~	2~	CM-AP19 ~	A ~	71DD68D91938A ~	U70 ~	MR ~	8525B ~	IS$$162382343655096 ~	APKT 19 ~	0~	6338572		3		TT8525B TT9080 TT2510
