TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

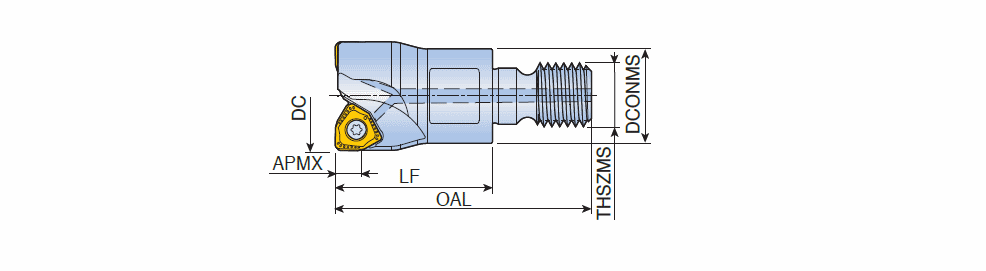

6N TE90-M-04 : 90° Modular end mills with T-FLEXTEC adaptation and positive economical six cutting edge of double-sided 6NKU 04 inserts

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1		RMPX	KAPR	HAND	Arbor	PD		Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
6N TE90-320-M10-04	MODULAR ~	20.00	3	18.00	35.00	55.00	M10	4.10	4.00~	O ~	0.00~	90.0~	~	~	RF ~	0.07	M2R-6N04 ~	71E01A05D27A8 ~	6NKU 040304R-M	SAI ~	02 ~	IS$$638343995123461 ~	35.00~	0~	3~	3~	6146524
6N TE90-525-M12-04	MODULAR ~	25.00	5	21.00	35.00	57.00	M12	4.10	4.00~	O ~	0.00~	90.0~	~	~	F ~	0.10	M2R-6N04 ~	71E01A05D27A8 ~	6NKU 040304R-M	SAI ~	02 ~	IS$$638343995123461 ~	35.00~	0~	5~	5~	6146525
6N TE90-632-M16-04	MODULAR ~	32.00	6	29.00	43.00	68.00	M16	4.10	4.00~	O ~	0.00~	90.0~	~	~	XF ~	0.23	M2R-6N04 ~	71E01A05D27A8 ~	6NKU 040304R-M	SAI ~	02 ~	IS$$638343995123461 ~	43.00~	0~	6~	6~	6146526
